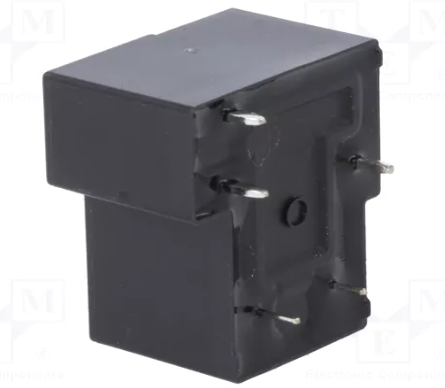

Apraksts

• Manufacturer ZETTLER
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• Contact current max. 40A
• Switched voltage max. 30V DC, max. 300V AC
• Relay variant power
• Manufacturer series AZ2150
• Mounting PCB

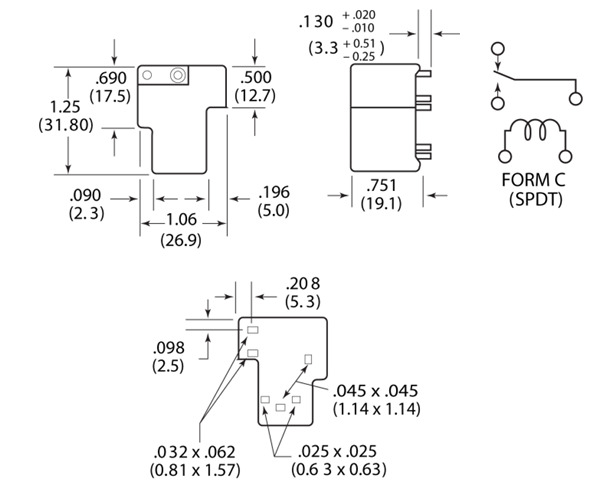

• Body dimensions 31,8x26,9x19,1mm
• AC contacts rating @R(at resistive load) 40A / 250V AC
• Coil resistance 155Ω
• Contact material AgCdO
• Coil power consumption 0,9W
• Operating temperature -55...85°C

Parametri

ZETTLER
12VDC
SPDT
40A/250VAC
20A/30VDC
uz pārslēgšanu
monostabilais
1
1
