Apraksts

• Manufacturer SHORI ELECTRIC
• Type of relay electromagnetic

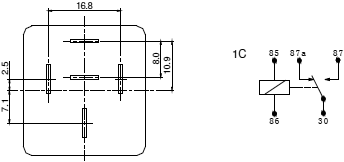

• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 40A
• DC contacts rating @R(at resistive load) 40A / 12V DC
• at resistive load
• Relay variant automotive
• Coil voltage min. 9V DC
• Coil voltage max. 18V DC
• Coil resistance 80Ω
• Contact material silver alloy
• Operating temperature -30...80°C

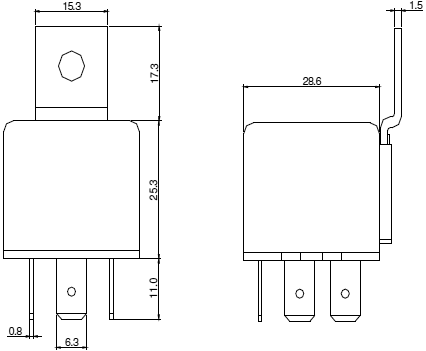

• Body dimensions 28.6x28.6x25.3mm
• Mounting on panel, socket
• Coil power consumption 1.8W
• Relay series S10
• Contact resistance 100mΩ
• Leads connectors 6,3x0,8mm
• Mechanical durability 10000000 cycles
• Coil current 150mA
• Operate time 10ms
• Release time 10ms
• Electrical life 100000 cycles
• Related items CS1-CW, RS-D03
• Gross weight38.745 g

Parametri

SHORI ELECTRIC
12VDC
SPDT
40A/12VDC
uz pārslēgšanu
monostabilais
1
1
