Apraksts

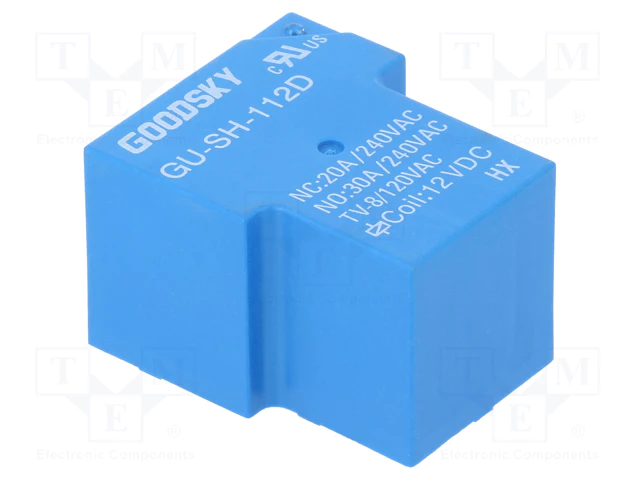

• Manufacturer GOODSKY
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 30A
• Relay variant power
• Relay series GU
• Operating temperature -25...55°C
• Mounting PCB

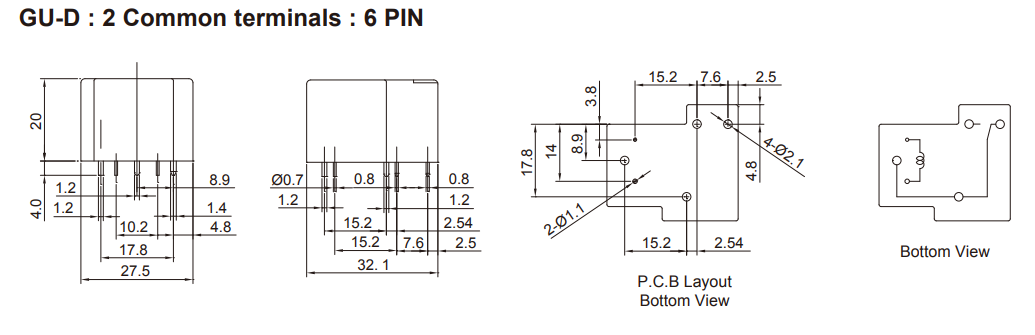

• Body dimensions 32,1x27,5x20mm
• Switched voltage max. 240V AC
• Coil resistance 155Ω
• AC contacts rating @R(at resistive load) 30A / 240V AC
• at resistive load
• DC contacts rating @R(at resistive load) 20A / 30V DC
• at resistive load
• Coil power consumption 930mW
• Contact resistance 100mΩ
• Operate time 15ms
• Release time 10ms
• Masa bruto27.5 g

Parametri

GOODSKY
12VDC
SPDT
30A/240VAC
20A/30VDC
uz pārslēgšanu
monostabilais
1
1
