Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• Contact current max. 40A
• DC contacts rating
• (at resistance load) 30 A / 14 VDC
• Relay variant automotive
• Coil voltage min. 8.4V DC
• Coil voltage max. 15.6V DC
• Coil resistance 90Ω;
• Switched voltage max 75V DC
• Contact material AgSnO2
• Mounting PCB
• Operating temperature -40...85°C

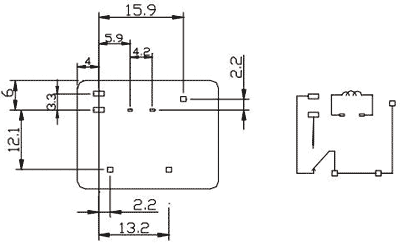

• Body dimensions 26 x 22 x 22.3mm
• Relay series FRA2
• Contact resistance 30mΩ;
• Mechanical durability 100000000cycles
• Weight 23g
• Leads for PCB
• Coil power consumption 1.6W
• Sealing IP65

Parametri

FORWARD INDUSTRIAL CO.
12VDC
SPDT
30A/14VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
