Apraksts

• Specification
• Relay type electromagnetic

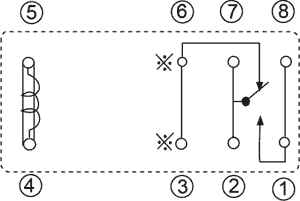

• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 24 VDC
• Contact current max. 16A
• Switched voltage max 300V DC, max 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω;
• Coil voltage min. 8.4V DC
• Operate time 15ms
• Body dimensions 29 x 12.7 x 15.7mm
• Release time 5ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series FTR-K1
• Contact resistance 100mΩ;
• Contact material AgSnO2
• Contacts pitch 5mm

Parametri

FUJITSU
12VDC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
