Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 24 VDC
• Contact current max. 16A
• Switched voltage max 250V AC, max 24V DC
• Relay variant bistable, miniature
• Mounting PCB
• Coil resistance 240Ω
• Operate time 15ms

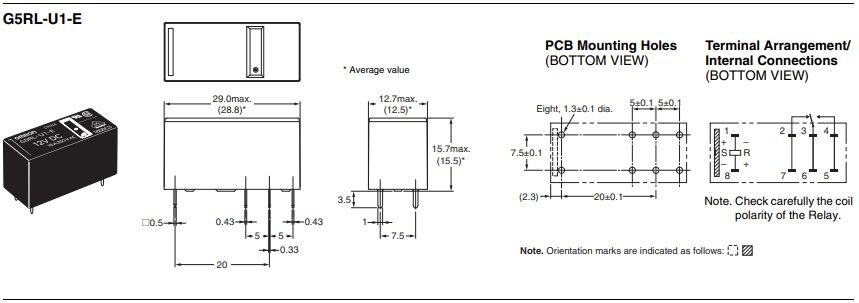

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 15ms
• Coil power consumption 600mW
• Operating temperature -40...85°C
• Relay series G5RL-U
• Contact resistance 100mΩ
• Terminal pitch 5mm
• Coil current 50mA
• Relay features single coil
• Leads for PCB

Parametri

OMRON
12VDC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
bistabilais
1
1
