Apraksts

• Manufacturer AMPHENOL ANYTEK
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 15A
• AC contacts rating @R(at resistive load) 12A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 15A / 24V DC
• at resistive load
• Relay series AWH
• Mounting PCB
• Coil resistance 400Ω

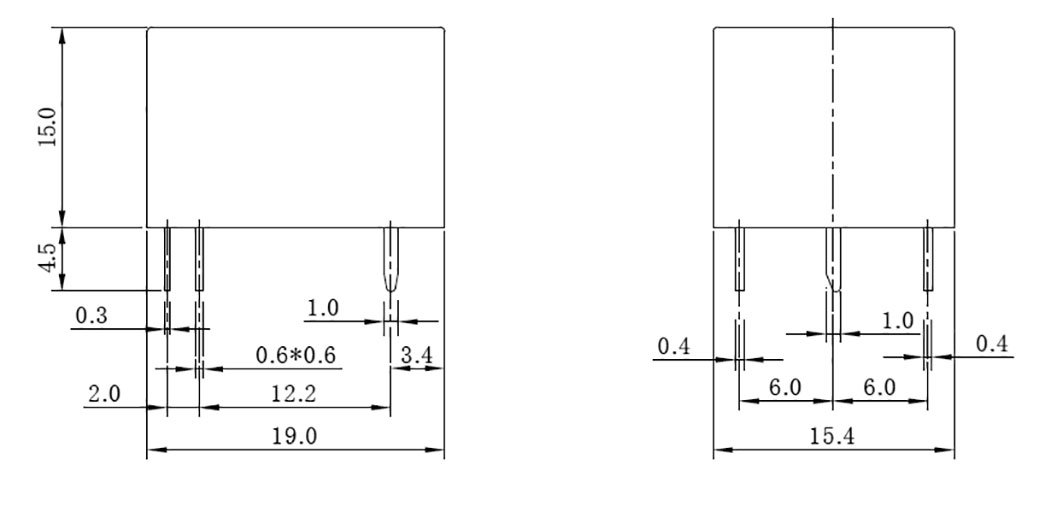

• Body dimensions 15.4x19x15mm
• Coil power consumption 360mW
• Operating temperature -30...85°C
• Contact material silver alloy

Parametri

AMPHENOL ANYTEK
12VDC
SPDT
12A/250VAC
15A/24VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
