Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• Contact current max. 150A
• DC contacts rating
• (at resistance load) 100 A / 12 VDC
• Relay variant automotive
• Coil voltage min. 7.8V DC
• Coil voltage max. 15.6V DC
• Coil resistance 50Ω;
• Switched voltage max 75V DC
• Contact material AgSnO2
• Mounting panel mounting
• Operating temperature -40...85°C
• Body dimensions 32.5 x 32.5 x 34mm
• Relay series FRC6
• Contact resistance 30mΩ;
• Mechanical durability 10000000cycles
• Weight 35g

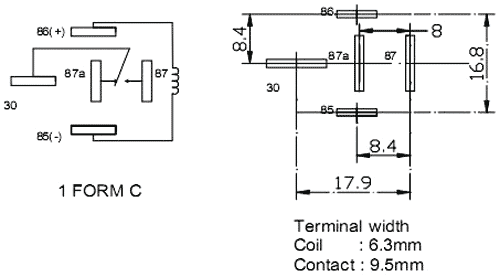

• Leads 6.3x0.8mm connectors, 9.5x1.2mm connectors
• Coil power consumption 2.9W
• Coil current 240mA
• Operate time 10ms
• Release time 5ms
• Electrical life 100000cycles

Parametri

FORWARD INDUSTRIAL CO.
12VDC
SPDT
100A/12VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija

61e903ebef552_FRC6
