Apraksts

• Manufacturer FUJITSU
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  0.5A / 120V AC
• DC contacts rating @R  1A / 24V DC
• Contact current max. 2A
• Switched voltage max. 60V DC,  max. 120V AC
• Relay variant signal,  subminiature
• Mounting PCB
• Coil resistance 960Ω
• Coil voltage min. 8.4V DC
• Operate time 5ms

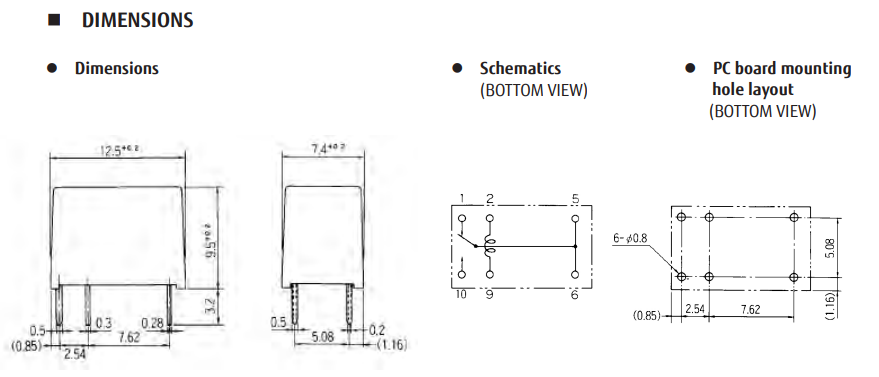

• Body dimensions 12.5x7.4x9.4mm
• Coil power consumption 150mW
• Mechanical durability 5000000 cycles
• Operating temperature -30...90°C
• Relay series SY
• Contact resistance 100mΩ
• Electrical life 100000 cycles
• Switching capacity 24W,  60VA
• Contact material AgPd/Au 0,2μm
• Terminal pitch 2.54mm
• Papildu informācijas
• Masa bruto: 1.813 g

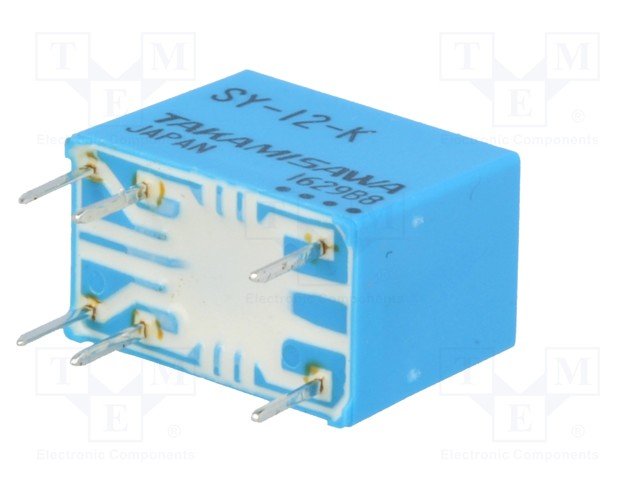

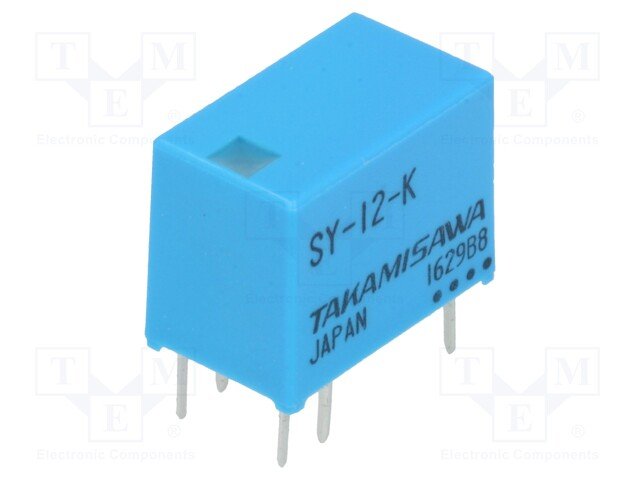

• Oriģināls simbols: SY-12-K

Parametri

FUJITSU
12VDC
SPDT
0.5A/120VAC
1A/24VDC
uz pārslēgšanu
monostabilais
1
1
