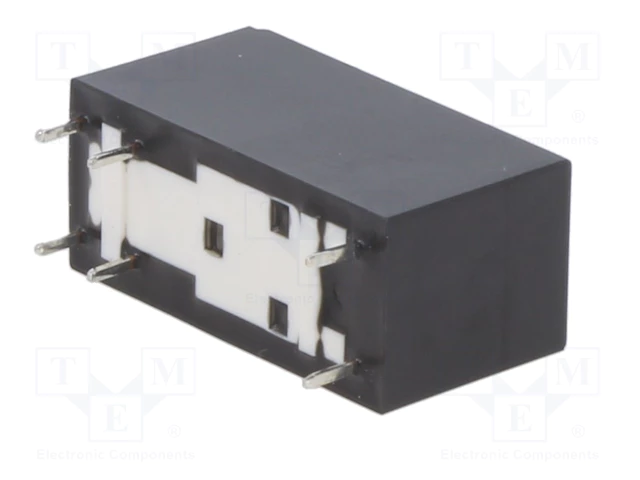

Apraksts

• Manufacturer OMRON Electronic Components
• Type of relay electromagnetic
• Contacts configuration DPST-NO
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 8A
• AC contacts rating @R(at resistive load) 8A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 8A / 30V DC
• at resistive load
• Relay series G2RL
• Switched voltage max. 300V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Operate time 15ms

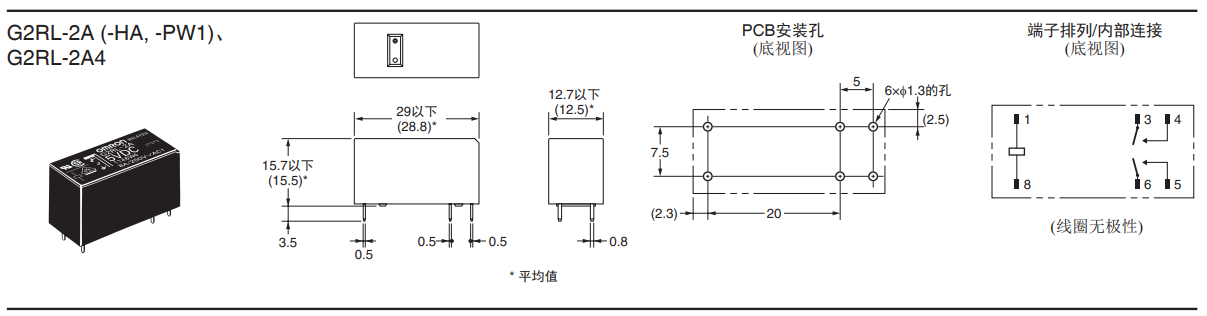

• Body dimensions 29x12.7x15.7mm
• Release time 5ms
• Mechanical durability 20000000 cycles
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Contact material AgNi
• Coil current 33.3mA
• Leads for PCB
• Enclosure description hermetic seal
• Gross weight11.24 g

Parametri

OMRON
12VDC
DPST-NO
2x8A/250VAC
2x8A/30VDC
uz saslēgšanu
monostabilais
2
1

Papildu dokumentācija
