Apraksts

• Manufacturer FINDER
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistive load) 2A / 125V AC
• DC contacts rating @R
• (at resistive load) 2A / 30V DC
• Contact current max. 3A
• Switched voltage max. 110V DC, max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 720Ω

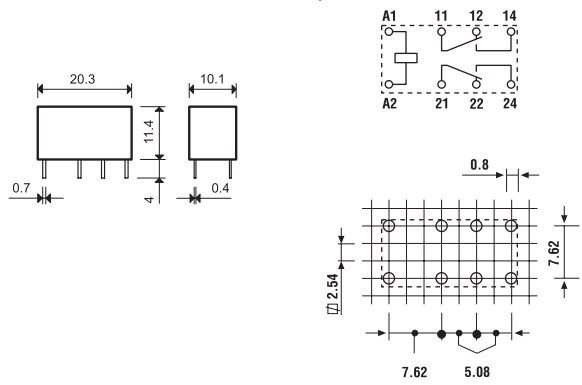

• Body dimensions 20.3x10.1x11.4mm
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Relay series 30.22
• Contact material AgNi/Au 5μm
• Terminal pitch 5mm
• Coil current 16mA Additional information
• Gross weight: 4.69 g
• Manufacturer part number: 30.22.7.012.0010

Parametri

FINDER
12VDC
DPDT
2x2A/125VAC
2x2A/30VDC
uz pārslēgšanu
2
monostabilais
1

Papildu dokumentācija
