Apraksts

• Specification

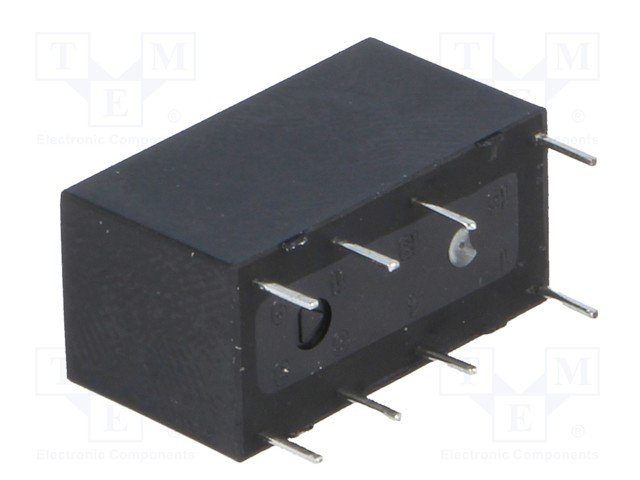

• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 1 A / 125 VAC
• DC contacts rating
• (at resistance load) 1.25 A / 30 VDC
• Contact current max. 2A
• Switched voltage max 125V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 405Ω;
• Operate time 6ms

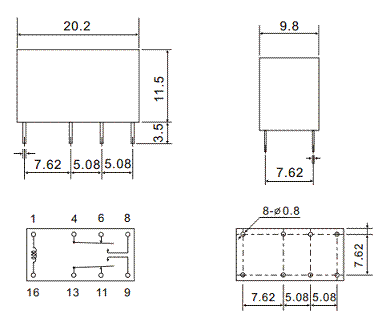

• Body dimensions 20.2 x 9.8 x 11.5mm
• Release time 3ms
• Coil power consumption 200mW
• Operating temperature -30...70°C
• Relay series RS
• Contact resistance 100mΩ;
• Contact material AgCdO
• Contacts pitch 5mm
• Coil current 22.2mA

Parametri

RAYEX RAYEX ELECTRONICS
12VDC
DPDT
2x1A/125VAC
1.25A/30VDC
uz pārslēgšanu
monostabilais
2
1
