Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 0.3 A / 125 VAC
• DC contacts rating
• (at resistance load) 1 A / 30 VDC
• Contact current max. 1A
• Switched voltage max 125V AC, max 60V DC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 1315Ω
• Operate time 3ms

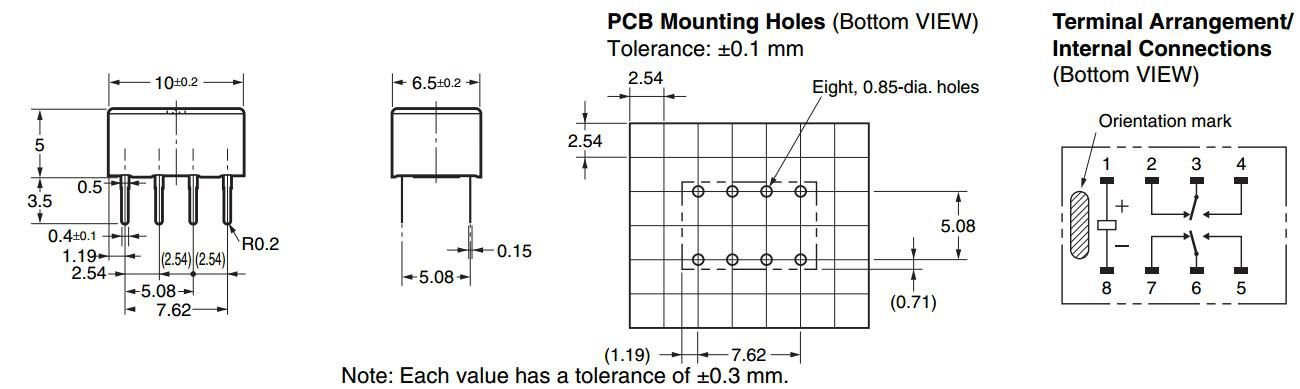

• Body dimensions 10 x 6.5 x 5.2mm
• Release time 3ms
• Coil power consumption 100mW
• Operating temperature -40...70°C
• Relay series G6K
• Contact resistance 100mΩ
• Contacts pitch 2.54mm
• Coil current 9.1mA

Parametri

OMRON
12VDC
DPDT
2x0.3A/125VAC
2x1A/30VDC
uz pārslēgšanu
monostabilais
2
1

Papildu dokumentācija
