Apraksts

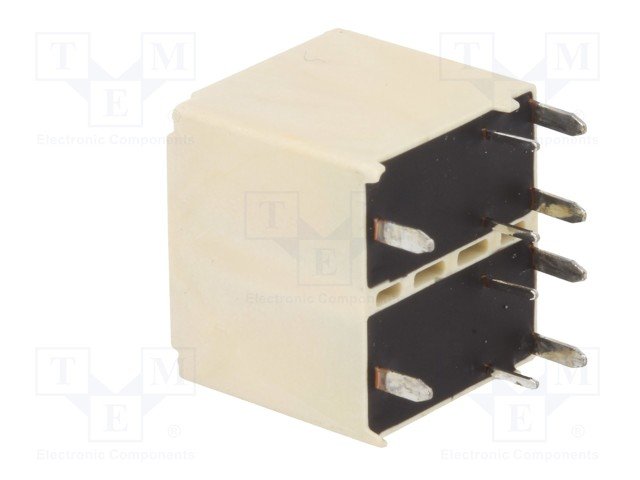

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPDT x2
• Rated coil voltage 12V DC
• Contact current max. 30A
• DC contacts rating @R
• (at resistance load) 25A / 12V DC
• Relay variant automotive
• Coil voltage min. 7.2V DC
• Coil voltage max. 16V DC
• Coil resistance 225Ω
• Contact material AgSnO2
• Operating temperature -40...105°C

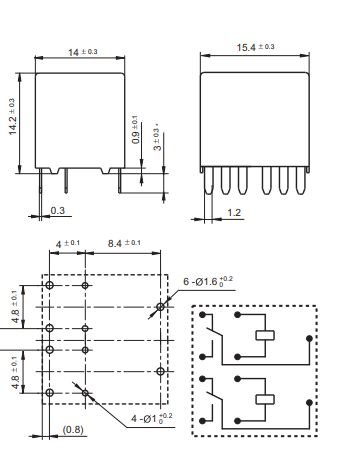

• Body dimensions 14x15.4x14.2mm
• Mounting PCB
• Coil power consumption 640mW
• Switched voltage max. 16V DC

Parametri

HONGFA RELAY
12VDC
SPDTx2
25A/12VDC
uz pārslēgšanu
monostabilais
2
2

Papildu dokumentācija
