Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration SPDT x2
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 20A
• DC contacts rating @R(at resistive load) 20A / 14V DC
• at resistive load
• Manufacturer series CJ
• Relay variant automotive, miniature
• Mounting PCB
• Coil resistance 180Ω
• Operate time 10ms

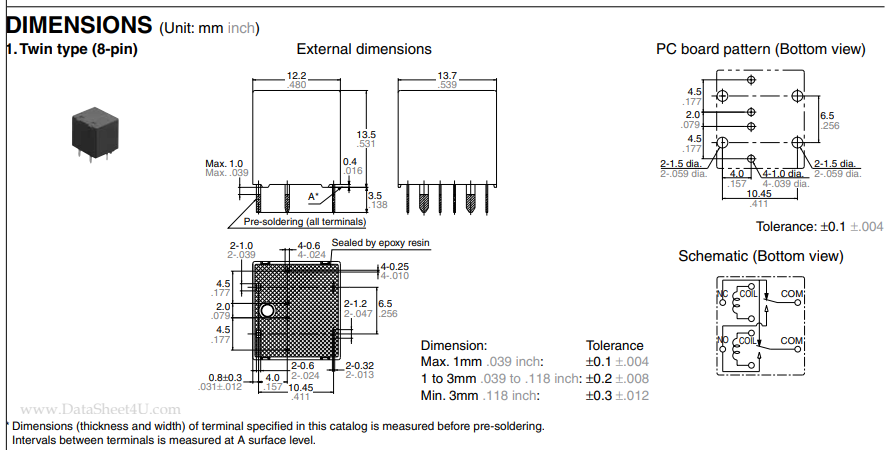

• Body dimensions 12,2x13,7x13,5mm
• Coil power consumption 0,8W
• Mechanical durability 10000000 cykli
• Operating temperature -40...85°C
• Contact resistance 50Ω
• Electrical life 100000 cykli
• Contact material silver alloy
• Terminal pitch 4,5mm
• Coil current 66,7mA
• Leads for PCB
• Masa bruto6.5 g

Parametri

PANASONIC
12VDC
SPDTx2
20A/14VDC
uz pārslēgšanu
monostabilais
2
2

Papildu dokumentācija
