Apraksts

• Specification
• Relay type electromagnetic
• Reed relay variant gray
• Contacts configuration DPDT
• Rated coil voltage 110V DC
• Switched voltage max 300V DC, max 400V AC
• Switched current 8A
• Mounting PCB
• Coil resistance 25.2kΩ;
• Coil voltage min. 77V DC
• Coil voltage max. 280V DC
• Operate time 7ms

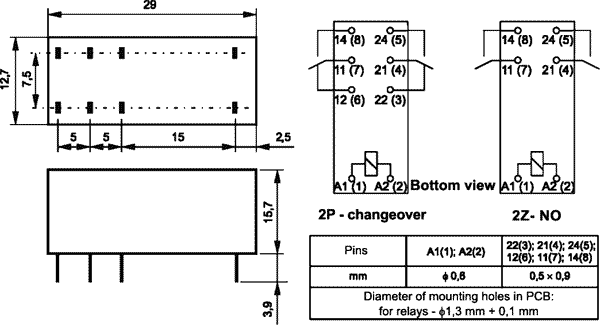

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• Sealing IP67
• Operating temperature -40...85°C
• Relay series RM84
• Contacts pitch 5mm

Parametri

RELPOL
110VDC
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
monostabilais
2
