Apraksts

• Manufacturer SCI
• Type of switch push-button
• Number of positions 2
• Stable positions number 1-position
• Contacts configuration SPST-NO
• AC contacts rating @R
• (at resistance load) 6A / 250VAC
• Actuator colour black
• Illumination none
• Leads 4,8x0,8mm connectors
• Switching method
• (item in brackets is instantaneous) OFF-(ON)
• Operating temperature -25...70°C
• Mounting on panel
• Button shape rectangular, prominent

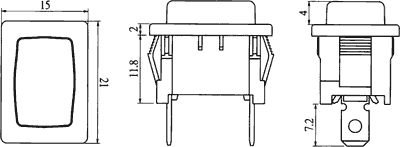

• Mounting hole diameter 19.4x13mm
• Max. contact resistance: 50mΩ
• Electrical life 6000cycles
• Manufacturer series R13-516
• Panel thickness max 2mm
• Body material polyamide
• Flammability rating UL94V-2

Parametri

SPST-NO
6A/250VAC
OFF-(ON)
Poga
Bez fiksācijas
Bez vītnes
Bez apgaismojuma

Papildu dokumentācija
