Apraksts

• Manufacturer SALECOM ELECTRONICS

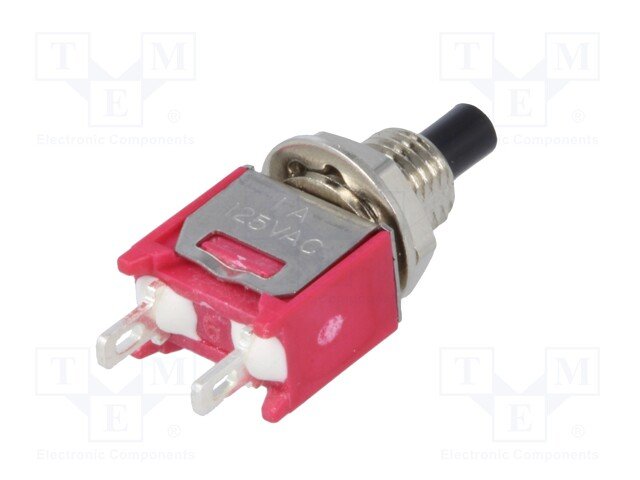

• Type of switch push-button
• Number of positions 2
• Contacts configuration SPST-NO
• AC contacts rating @R(at resistive load) 1A / 120V AC
• DC contacts rating @R(at resistive load) 1A / 28V DC
• Switching method(the position in bracket indicates momentary position.) OFF-(ON)
• Illumination none
• Leads for soldering
• Operating temperature -30...85°C
• Max. contact resistance: 20mΩ
• Mechanical durability 60000 cycles
• Button shape prominent, round
• Actuator colour black
• Min. insulation resistance 1GΩ
• Mounting on panel, THT
• Related items SCV1RT, SCV1SW
• Stable positions number 1

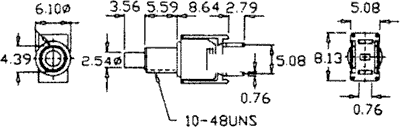

• DimensionsSee
• Gross weight1.5 g

Parametri

SPST-NO
1A/125VAC
1A/28VDC
OFF-(ON)
Poga
Bez fiksācijas
M6
Bez apgaismojuma

Papildu dokumentācija
