Apraksts

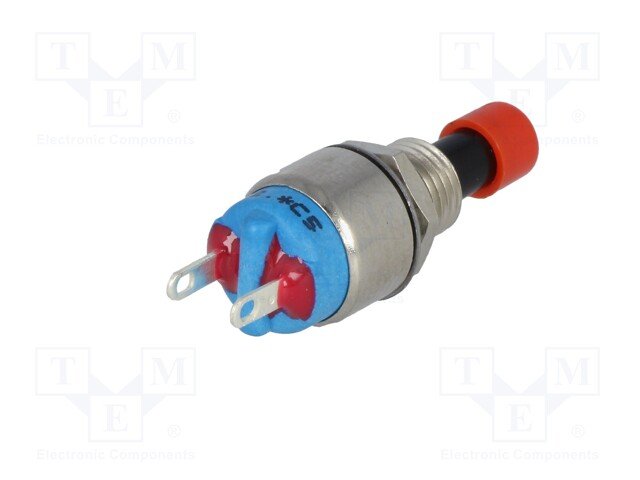

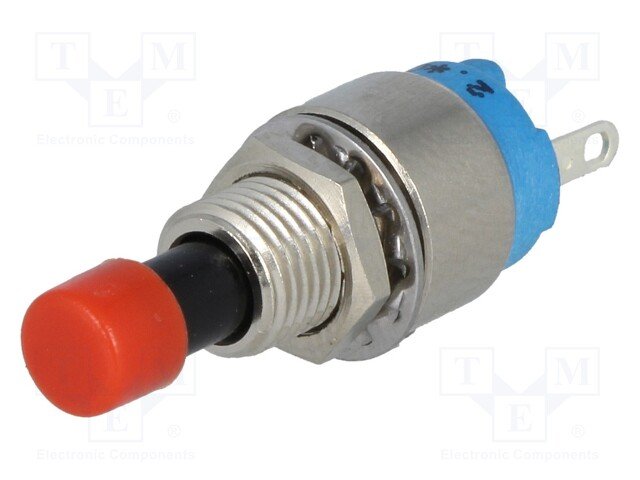

• Manufacturer APEM
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPST-NO
• AC contacts rating @R  0.6A / 125V AC
• (at resistive load)
• DC contacts rating @R  1A / 30V DC
• (at resistive load)
• Switching method  OFF-(ON)
• (the position in bracket indicates momentary position.)
• Illumination none
• Leads for soldering
• Operating temperature -30...65°C
• Electrical life 250000 cycles
• Max. contact resistance: 50mΩ
• Button shape prominent,  round
• Mounting hole diameter Ø6.35mm
• Manufacturer series 9600
• Actuator colour red
• Mounting on panel
• Related items U1142,  U1146,  U1318,  U1320,  U1401,  U1403
• Stable positions number 1

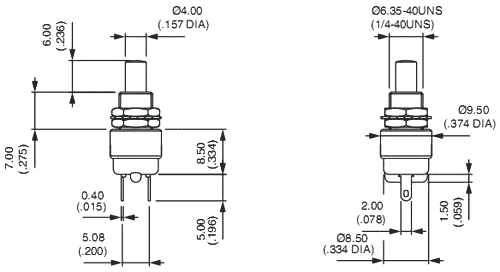

• Dimensions see
• Additional information
• Gross weight: 2.51 g
• Manufacturer part number: 9633NAB + U906

Parametri

0.6A/125VAC
1A/30VDC
Poga
Bez fiksācijas
M6
Bez apgaismojuma
SPST-NO
OFF-(ON)

Papildu dokumentācija
