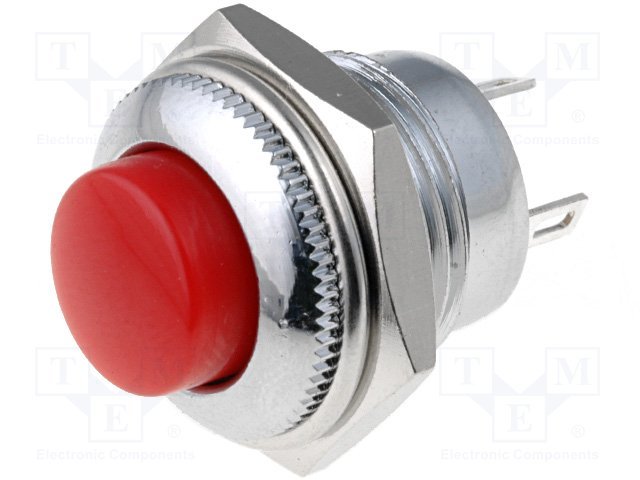

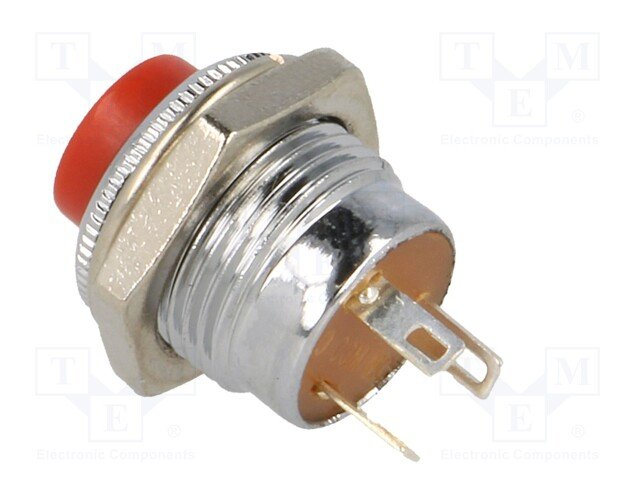

Apraksts

• Manufacturer SCI
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPDT
• AC contacts rating @R  1.5A / 250V AC
• Switching method  ON-(ON)
• Illumination none
• Leads for soldering
• Operating temperature -25...70°C
• Electrical life 6000 cycles
• Max. contact resistance: 50mΩ
• Button shape prominent,  round

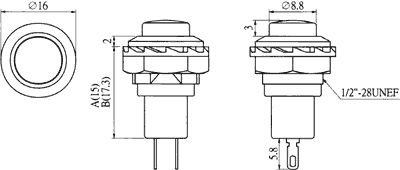

• Mounting hole diameter Ø12.7mm
• Body material metal
• Manufacturer series R13-502
• Actuator colour red
• Panel thickness max. 3mm
• Mounting on panel
• Stable positions number 1
• Additional information
• Gross weight: 7.433 g
• Manufacturer part number: R13-502-MC-05-0R

Parametri

SPDT
1.5A/250VAC
ON-(ON)
Poga
Bez fiksācijas
M12
Bez apgaismojuma
