Apraksts

• Specification
• Switch type vandal resistant
• Stable positions number monostable
• Contacts configuration DPDT
• AC contacts rating
• (at resistance load) 3 A / 250 VAC
• DC contacts rating
• (at resistance load) 4 A / 30 VDC
• Switching method ON-(ON)
• Leads solder lugs
• Operating temperature -40...85°C
• Electrical life 30000cycles
• Max. contact resistance: 10mΩ;
• Test voltage 2kV
• Contact material silver

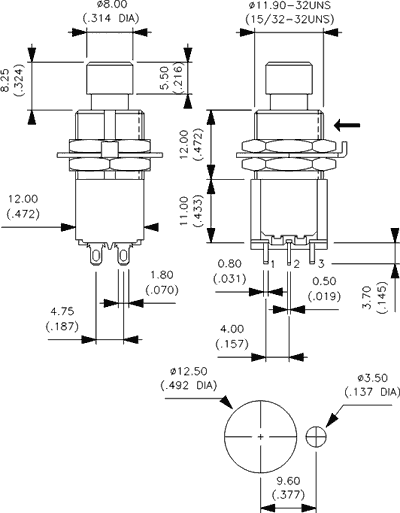

• Mounting hole diameter Ø;12.5mm
• Body material brass
• Min. insulation resistance 100MΩ;
• Body plating nickel

Parametri

DPDT
3A/250VAC
4A/30VDC
ON-(ON)
Poga
Bez fiksācijas
M12
Bez apgaismojuma
