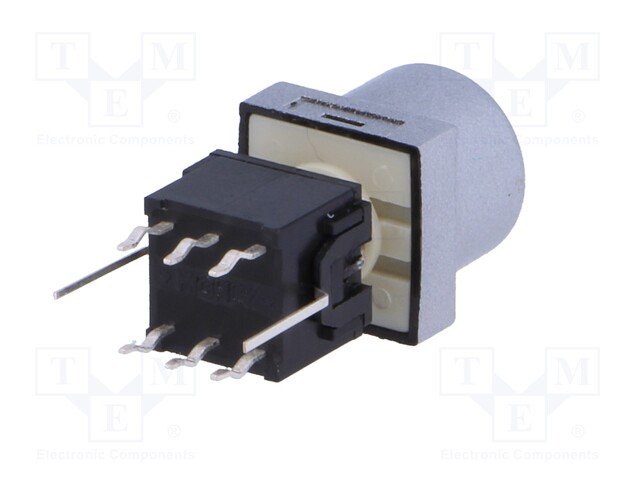

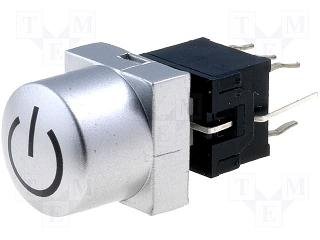

Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju
Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju
Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju
Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Poga DPDT, ON-ON, 0.1A/30VDC, THT, LED3.3VDC, zila krasa, 10x10x19.8mm, ar fiksaciju

Cena: 2.13 €
00016364
PB61302AL-4-101
2

  • Apraksts

    • Manufacturer HIGHLY
    • Type of switch keypad
    • Button marking POWER
    • Number of positions 2
    • Contacts configuration  DPDT
    • DC contacts rating @R  0.1A / 30V DC
    • Actuator colour silver
    • Illumination LED
    • Backlight colour blue
    • Mounting THT
    • Leads for PCB,  straight
    • Switching method  ON-ON
    • Operating temperature -10...80°C
    • Manufacturer series PB613
    • Body dimensions 10x10mm
    • Stable positions number 2
    • Operating Force 1.5N
    • Max. contact resistance: 50mΩ
    • Min. insulation resistance 100MΩ
    • Electrical life 10000 cycles
    • Button shape round
    • Terminal pitch 2.54x5.08mm
    • Button height  19.8mm

    Parametri

    DPDT
    0.1A/30VDC
    ON-ON
    Poga
    Ar fiksāciju
    Bez vītnes
    LED3.3VDC

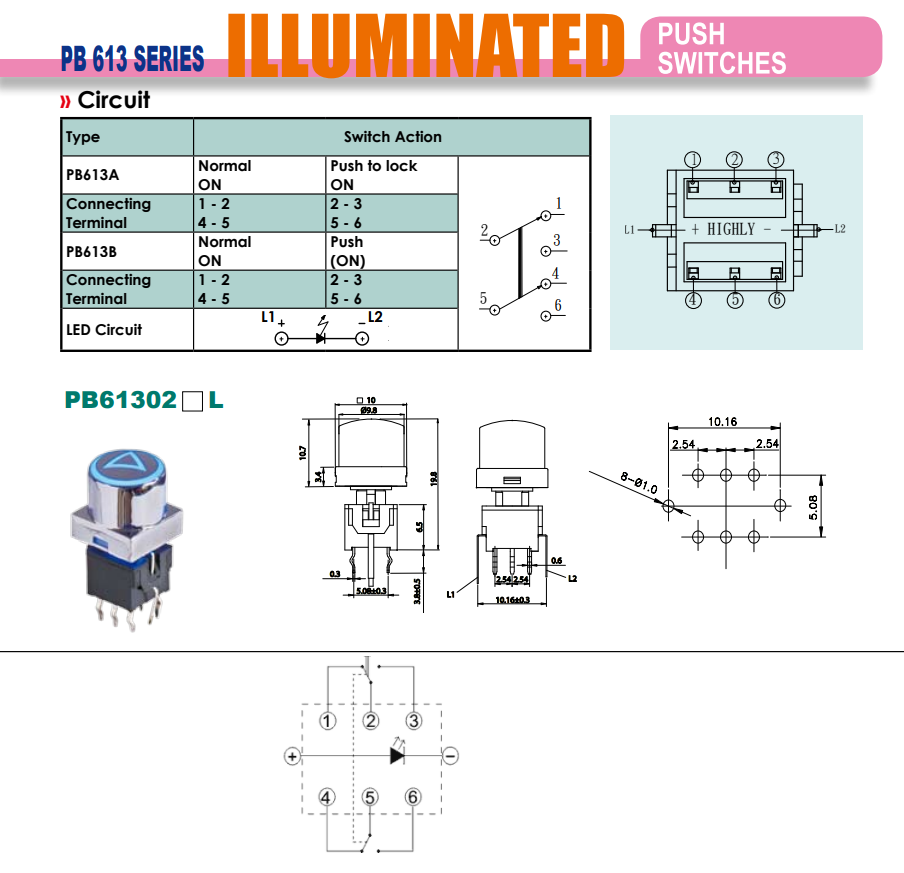

    Papildu dokumentācija
