Apraksts

• Manufacturer ALPS
• Type of switch push-button
• Number of positions 2
• Stable positions number 2
• Contacts configuration 4PDT
• DC contacts rating @R(at resistive load) 0,1A / 30V DC
• Switching method(the position in bracket indicates momentary position.) OFF-ON
• Illumination none
• Leads for PCB
• Mechanical durability 30000 cykli
• Button shape square
• Min. insulation resistance 0,1GΩ
• Mounting THT

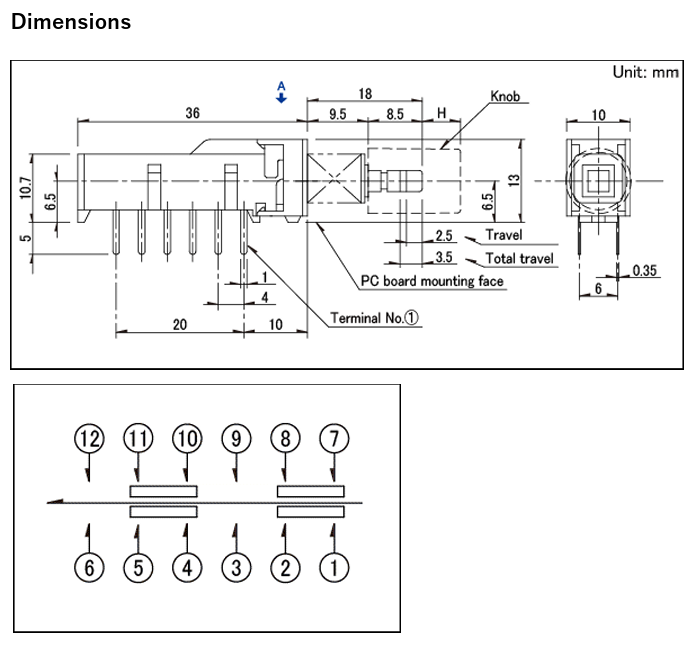

• Body dimensions 33,5x10x13mm
• Contact resistance 20mΩ
• Manufacturer series SPUN
• Operating temperature -10...60°C
• Masa bruto3.975 g

Parametri

4PDT
0.1A/30VDC
OFF-ON
Poga
Ar fiksāciju
Bez vītnes
Bez apgaismojuma

Papildu dokumentācija
