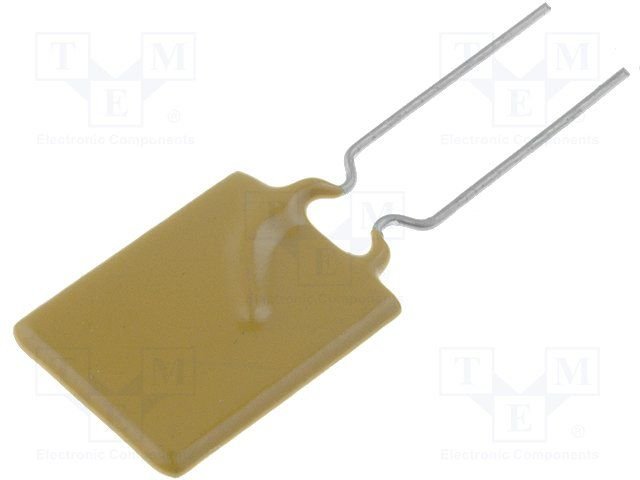

Apraksts

• Manufacturer ECE
• Fuse type PTC polymer
• Rated current 2.5A
• Switched current 5A
• Voltage max. 30V DC
• Power 1.2W
• Min. resistance 20mΩ
• Max resistance 700mΩ
• A dimension 11.4mm
• B dimension 18.3mm
• C dimension 5.1mm
• D dimension 7.6mm
• E dimension 3mm
• F dimension 0.8mm
• Operating temperature -40...85°C
• Leads dimensions Ø0.51 x 7.6mm

Parametri

2.5A
30VDC
