Apraksts

• Manufacturer ECE

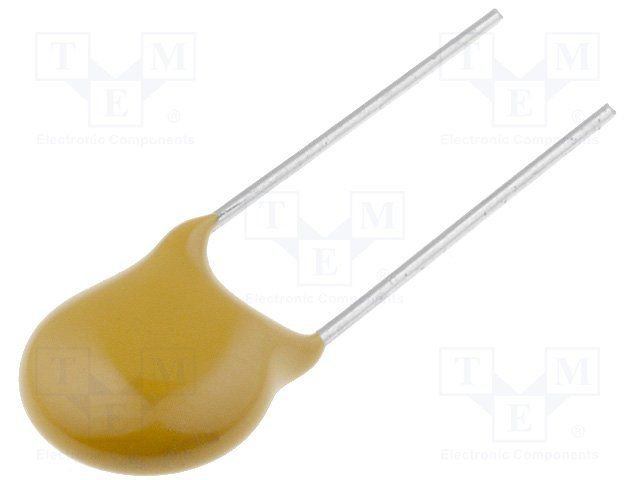

• Fuse type PTC polymer
• Rated current 120mA
• Max surge current 1.2A
• Switched current 300mA
• Voltage max. 240V AC
• Power 1W
• Min. resistance 3Ω
• Max resistance 12Ω
• A dimension 8.3mm
• B dimension 10.7mm
• C dimension 5.1mm
• D dimension 7.6mm
• E dimension 3.8mm
• Operating temperature -40...85°C
• Leads dimensions Ø0.51 x 7.6mm

Parametri

0.12A
240VAC

Papildu dokumentācija
