Apraksts

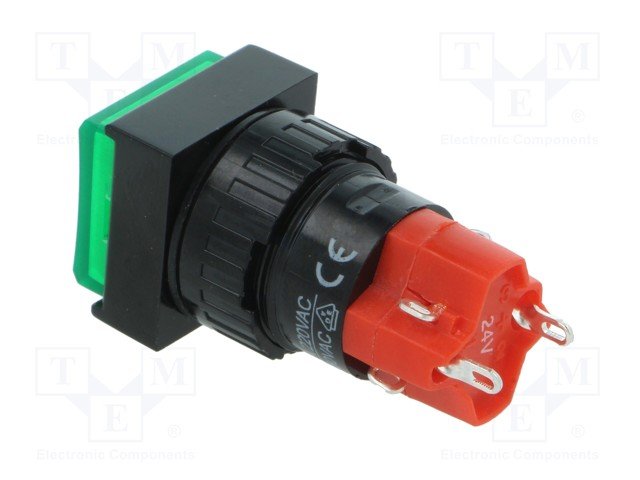

• Manufacturer ONPOW
• Type of switch push-button
• Number of all positions 2
• Stable positions number 2-position
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 3A / 250VAC
• DC contacts rating @R
• (at resistance load) 2A / 24VDC
• Actuator colour green
• Illumination LED 24V AC/DC
• Backlight colour green
• Leads for soldering
• Switching method
• (item in brackets is instantaneous) ON-ON
• Operating temperature -25...55°C
• Mounting on panel

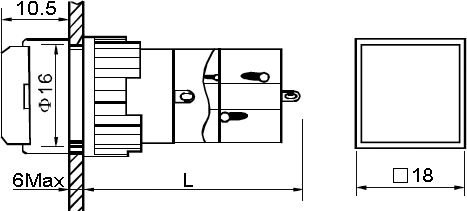

• Mounting hole diameter Ø16mm
• Button shape square
• Body colour black
• IP rating IP40

Parametri

3A/250VAC
2A/24VDC
ON-ON
2
IP40
2
Paneļu slēdzis
Ø16mm
Ar fiksāciju
Zaļš

Papildu dokumentācija
