Apraksts

• Manufacturer: Vishay
• Product Category: MOSFETs
• RoHS: Details
• REACH - SVHC:
• Technology: Si
• Mounting Style: SMD/SMT

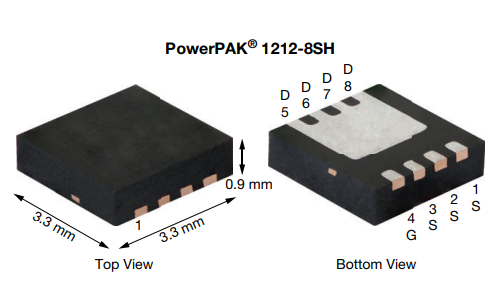

• Package/Case: PowerPAK-1212-8S
• Transistor Polarity: P-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 35 A
• Rds On - Drain-Source Resistance: 7 mOhms
• Vgs - Gate-Source Voltage: - 20 V, + 20 V
• Vgs th - Gate-Source Threshold Voltage: 2.5 V
• Qg - Gate Charge: 126 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 52 W
• Channel Mode: Enhancement
• Tradename: TrenchFET, PowerPAK
• Series: SIS
• Packaging: Reel
• Packaging: Cut Tape
• Packaging: MouseReel
• Brand: Vishay / Siliconix
• Configuration: Single
• Fall Time: 10 ns
• Forward Transconductance - Min: 47 S
• Product Type: MOSFETs
• Rise Time: 13 ns

Parametri

-30V
-35A
52W
0R007
PowerPAK-1212-8S
