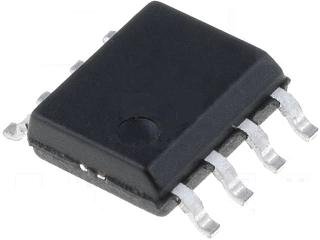

Apraksts

• Manufacturer: onsemi
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: SMD/SMT
• Package/Case: SOIC-8
• Transistor Polarity: P-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 5.3 A
• Rds On - Drain-Source Resistance: 50 mOhms
• Vgs - Gate-Source Voltage: - 25 V, + 25 V
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Qg - Gate Charge: 10 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 2.5 W
• Channel Mode: Enhancement
• Tradename: PowerTrench
• Packaging: Reel
• Packaging: Cut Tape
• Packaging: MouseReel
• Brand: onsemi / Fairchild
• Configuration: Single
• Fall Time: 9 ns
• Forward Transconductance - Min: 10 S
• Height: 1.75 mm
• Length: 4.9 mm
• Product Type: MOSFET
• Rise Time: 13 ns

Parametri

-30V
-5.3A
2.5W
0R05
SO8
