Apraksts

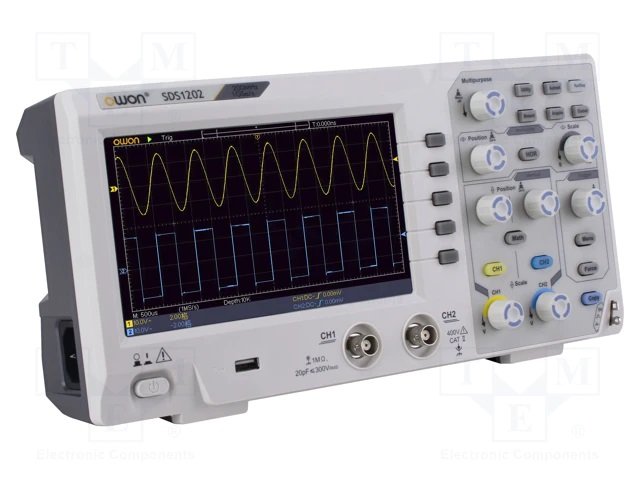

• Manufacturer OWON
• Type of oscilloscope digital
• Number of channels 2
• Sampling 1Gsps
• Memory record length 10kpts
• Kind of display used LCD 7" (800x480)
• Trigger modes automatic,  normal,  single
• Trigger falling-edge,  rising-edge,  video signal
• Time base 2n...1000s/div
• Max. input voltage 400V
• Vertical resolution 8bit
• Input coupling AC, DC, GND
• Interface USB
• Series SDS
• Power consumption 15W
• Power supply 100...240V AC 50/60Hz
• Plug variant EU
• Body dimensions 301x152x70mm
• Weight 1.1kg
• Rise time ≤1.7ns
• Input sensitivity 5mV/div...5V/div
• Band 200MHz
• Input impedance 1MΩ/20pF
• Measuring instrument features
• 16 runs memory
• AUTOSET function for setting display parameters (time base, gain)
• compact design
• FFT analysis
• mathematical functions: addition, subtraction, multiplification, division and signal phase reversing
• X-Y operation mode
• Standard equipment
• mains cable
• oscilloscope probe (1 per channel)
• software
• USB cable
• user's manual
• Additional information
• Gross weight: 1700.1 g
• Manufacturer part number: SDS1202
