Apraksts

• Manufacturer: STMicroelectronics
• Product Category: Bipolar Transistors - BJT
• RoHS: Details
• Mounting Style: Through Hole

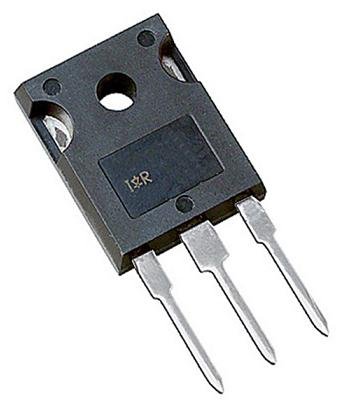

• Package/Case: TO-247-3
• Transistor Polarity: NPN
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 60 V
• Collector- Base Voltage VCBO: 100 V
• Emitter- Base Voltage VEBO: 7 V
• Collector-Emitter Saturation Voltage: 1 V
• Maximum DC Collector Current: 15 A
• Pd - Power Dissipation: 90 W
• Gain Bandwidth Product fT: -
• Minimum Operating Temperature: -
• Maximum Operating Temperature: + 150 C
• Series: TIP3055
• Packaging: Tube
• Brand: STMicroelectronics
• Continuous Collector Current: 15 A
• DC Collector/Base Gain hFE Min: 20
• DC Current Gain hFE Max: 70
• Height: 20.15 mm
• Length: 15.75 mm
• Product Type: BJTs - Bipolar Transistors

Parametri

TO-247
100V
15A
NPN
