Apraksts

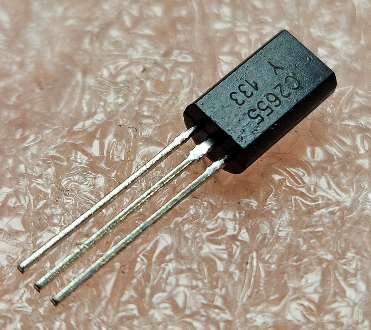

• Type Designator: 2SC2655-Y
• Material of Transistor: Si
• Polarity: NPN
• Maximum Collector Power Dissipation (Pc): 0.9 W
• Maximum Collector-Base Voltage |Vcb|: 50 V
• Maximum Collector-Emitter Voltage |Vce|: 50 V
• Maximum Emitter-Base Voltage |Veb|: 5 V
• Maximum Collector Current |Ic max|: 2 A
• Max. Operating Junction Temperature (Tj): 150 °C
• Transition Frequency (ft): 100 MHz
• Collector Capacitance (Cc): 30 pF
• Forward Current Transfer Ratio (hFE), MIN: 120
• Noise Figure, dB: -
• Package: TO92MOD

Parametri

TO-92mod
50V
2A
NPN

Papildu dokumentācija
