Apraksts

• Manufacturer UNI-T
• Type of meter digital multimeter
• Measurement AC current, AC voltage, capacitance, continuity, DC current, DC voltage, frequency, resistance, transistors' gain hFE
• Kind of display used LCD (6000), with a backlit
• DC voltage measuring range 600mV/6V/60V/600V/1kV
• DC voltage measuring accuracy ±(0,5% + 2 digits)
• AC voltage measuring range 6V/60V/600V/750V
• AC voltage measuring accuracy ±(0,8% + 3 digits)
• DC current measuring range 60µA/600µA/6mA/60mA/600mA/20A
• AC current measuring range(1) indirect measurement) 60µA/600µA/6mA/60mA/600mA/20A
• DC current measuring accuracy ±(0,8% + 8 digits)
• AC current measuring accuracy ±(1% + 12 digits)
• True effective value measurement True RMS
• Resistance measuring range 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Resistance measuring accuracy ±(0,8% + 3 digits)
• Capacitance measuring range 6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF/100mF
• Capacitance measuring accuracy ±(3% + 10 digits)
• Frequency measuring range 10...10MHz
• Frequency measuring accuracy ±(1% + 5 digits)
• Test 0...3V
• Continuity test <10Ω, acoustic indication
• Operating temperature 0...40°C
• Weight 346g

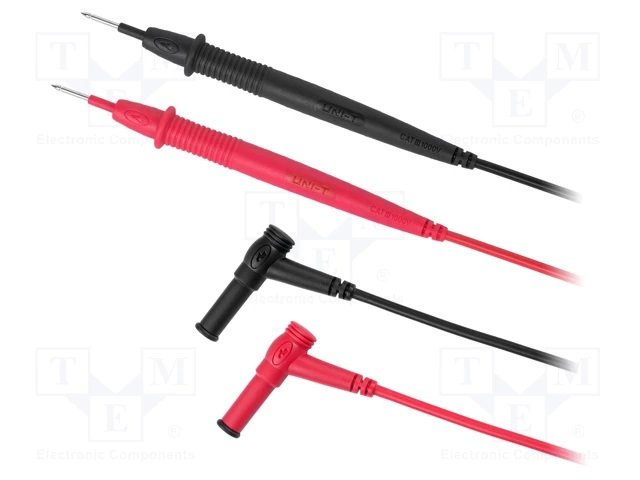

• Standard equipment test leads
• Conform to the norm EN61010 600V CAT III, EN61010 1000V CAT II
• Dimensions (W x H x D) 88x183x56mm
• Power supply
• battery R6 AA 1,5V x2
• Measuring instrument features
• automatic power-off
• contactless voltage detector
• HOLD function
• low battery indicator
• MIN/MAX function
• overflow indicator
• REL function
• Battery/ rechargeable battery
• battery R6 AA 1,5V x2
• Gross weight520.8 g
