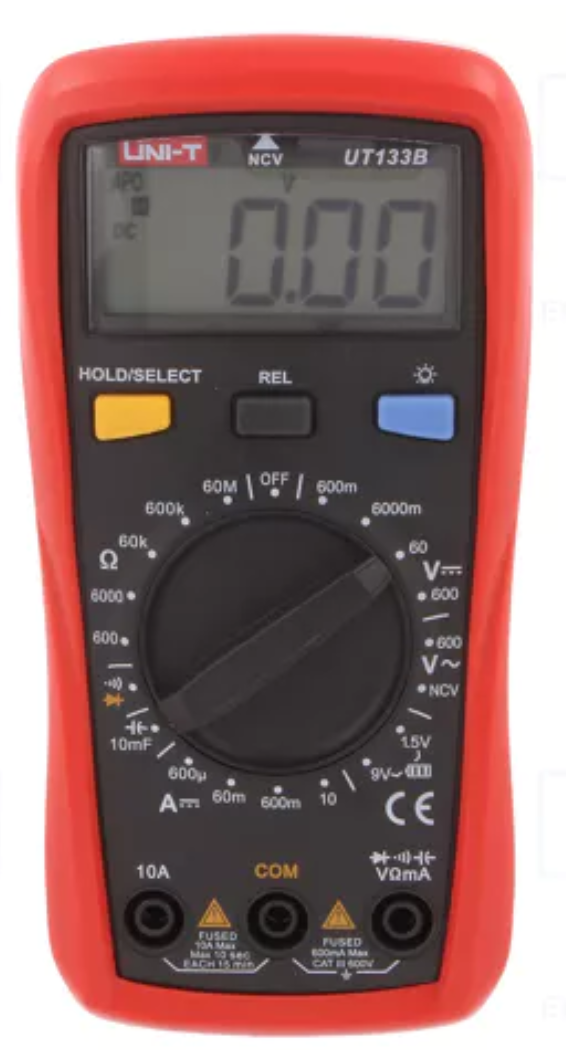

• Manufacturer UNI-T
• Type of meter digital multimeter
• Measurement AC voltage, capacitance, continuity, DC current, DC voltage, resistance
• Kind of display used LCD
• Display parameters (5999)
• DC voltage measuring range 600mV/6V/60V/600V
• DC voltage measuring accuracy ±(0,5% + 3 digit)
• AC voltage measuring range 600V
• AC voltage measuring accuracy ±(1,2% + 3 digit)
• DC current measuring range 600µA/60mA/600mA/10A
• DC current measuring accuracy ±(1% + 2 digit)
• Resistance measuring range 600Ω/6kΩ/60kΩ/600kΩ/60MΩ
• Capacitance measuring range 10nF/100nF/1µF/10µF/100µF/1mF/10mF
• Capacitance measuring accuracy ±(4%+ 5 digit)
• Resistance measuring accuracy ±(0,8%+2 digit)
• Test battery, diodes
• Continuity test acoustic indication, <10Ω

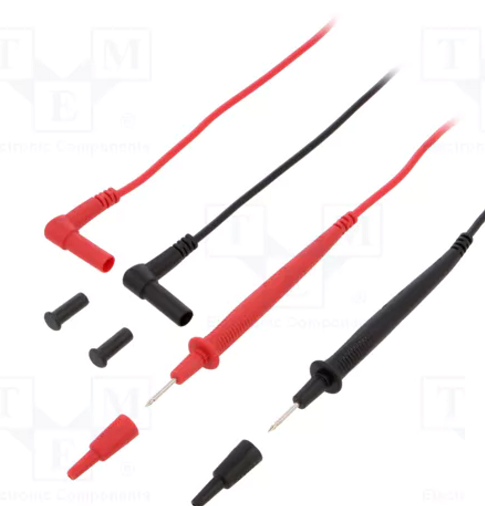

• Standard equipment test leads
• Conform to the norm CAT III 600V EN 61010
• Dimensions (W x H x D) 76,5x155x49mm
• Illumination yes
• Power supply
• battery LR03 AAA 1,5V x2
• Measuring instrument features
• contactless voltage detector
• HOLD function
• low battery indicator
• manual ranging
• overflow indicator
• Masa bruto384.1 g
