Apraksts

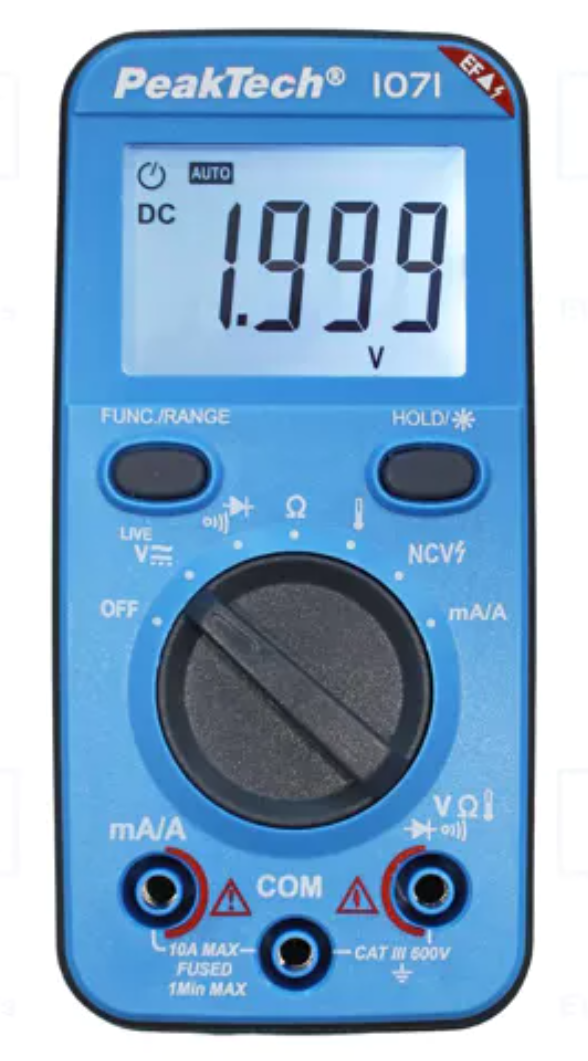

• Manufacturer PEAKTECH
• Type of meter digital multimeter
• Measurement AC current, AC voltage, continuity, DC current, DC voltage, resistance, temperature (external probe required)
• Kind of display used LCD
• Display parameters 3,5 digit (2000)
• DC voltage measuring range 2V/20V/200V/600V
• DC voltage measuring accuracy ±(0,5% + 3 digit)
• AC voltage measuring range 2V/20V/200V/600V
• AC voltage measuring accuracy ±(1% + 3 digit) @600V, ±(1% + 6 digit) @2V
• DC current measuring range 2A/10A
• DC current measuring accuracy ±(1% + 3 digit) @2A, ±(1,5% + 3 digit) @10A
• AC current measuring range(1) indirect measurement) 2A/10A
• Resistance measuring range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
• Temperature measuring range -200...1200°C
• Temperature measurement accuracy ±(2% + 3°C)
• Diode test 1mA @1,5V
• Test diodes
• Continuity test acoustic indication, <50Ω
• Conform to the norm CAT III 600V
• Dimensions (W x H x D) 130x63x35mm
• Measuring instrument features low battery indicator
• AC current measuring accuracy
• ±(1,5% + 3 digit)@2A
• ±(2% + 3 digit)@10A
• Resistance measuring accuracy
• ±(0,5%+2 digit)@(2kΩ...2MΩ)
• ±(0,5%+3 digit)@(200Ω)
• ±(1,5%+3 digit)@(20MΩ)
• Power supply
• battery LR03 AAA 1,5V x2
• Standard equipment

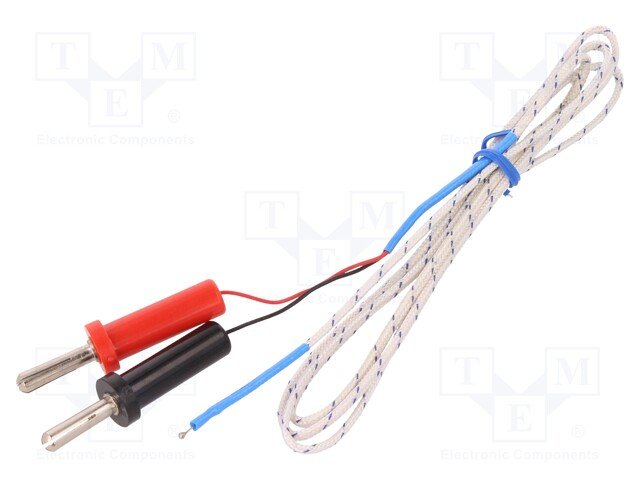

• K-type thermocouple

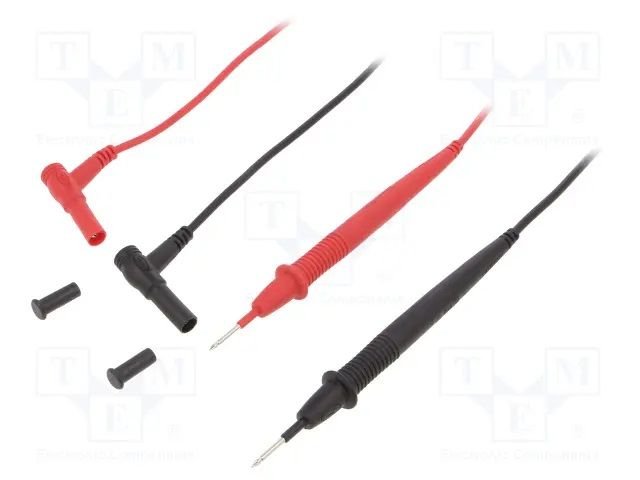

• test leads
• user's manual
• Battery/ rechargeable battery
• battery LR03 AAA 1,5V x2
• Masa bruto253.1 g
