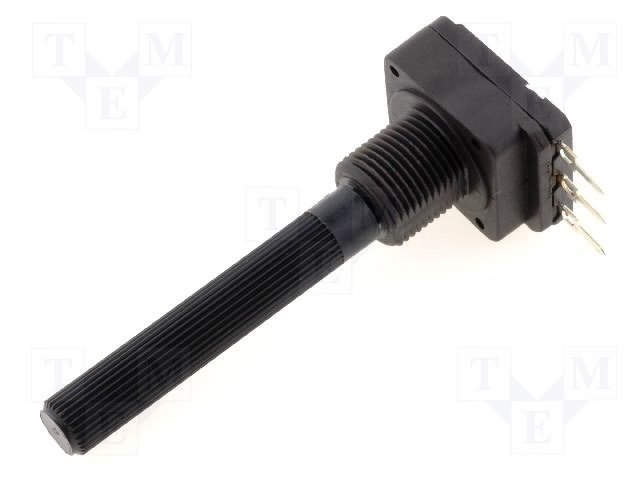

Apraksts

• Manufacturer PIHER
• Potentiometer type shaft
• Potentiometer kind single turn
• Resistance 50kΩ;
• Power 100mW
• Mounting THT
• Shaft diameter 6mm
• Characteristics logarithmic
• Body material plastic
• Track material carbon
• Potentiometer features mono
• Shaft surface knurled
• Max. operating voltage 125V DC
• Potentiometer series PC-16

Parametri

50K
0.2W
Vienapgriezienu
Logarimiska atkarība
Mono

Papildu dokumentācija
