Apraksts

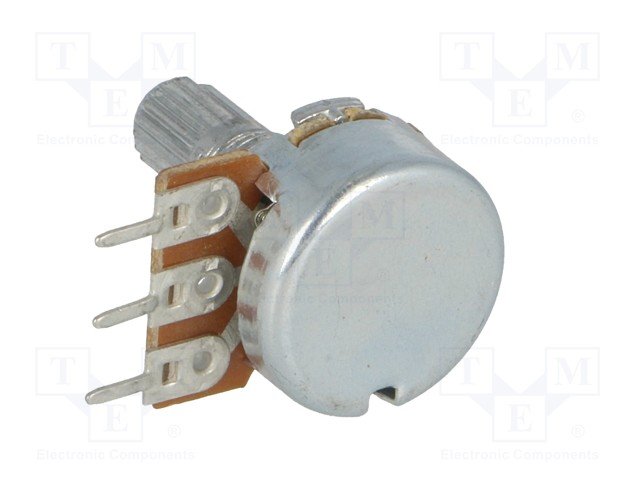

• Manufacturer SR Passives
• Potentiometer type shaft
• Kind of potentiometer single turn
• Resistance 500kΩ
• Power 125mW
• Tolerance ±20%
• Mounting THT
• Shaft diameter 6mm
• Shaft length 9mm
• Characteristics linear
• Body dimensions Ø17 x 9.2mm
• Thread length 6mm
• Body material metal
• Leads for PCB
• Track material carbon
• Potentiometer features mono
• Shaft surface knurled
• Mechanical rotation angle 300°
• Terminal pitch 5mm
• L shaft length 15mm
• Max. operating voltage 200V
• Panel cutout diameter 7.2mm Additional information
• Gross weight: 7.71 g

Parametri

500K
0.125W
Vienapgriezienu
Lineāre atkarība
Mono
