Apraksts

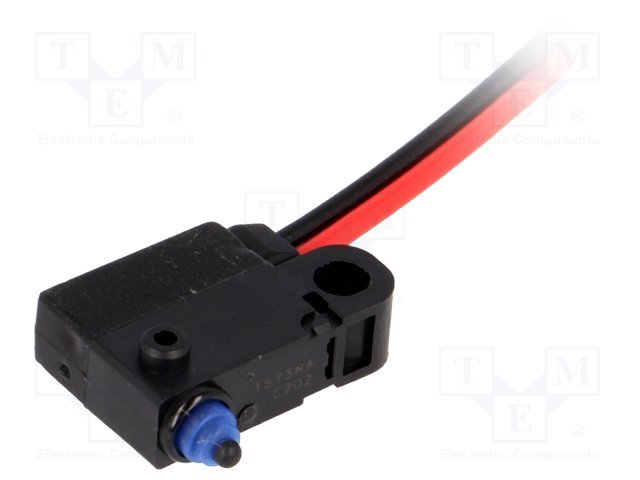

• Manufacturer OMRON
• Switch type microswitch
• Switches features without lever
• Contacts configuration SPST-NC
• AC contacts rating
• (at resistance load) 0.1 A / 125 VAC
• DC contacts rating
• (at resistance load) 2 A / 12 VDC
• Switching method ON-(OFF)
• Stable positions number 1-position
• IP rating IP67
• Leads 300mm leads, on right
• Body dimensions 18.5 x 5.3 x 6.5mm
• Mechanical durability 1000000cycles
• Operating temperature -40...85°C
• Operating Force 0.75N
• Electrical life 100000cycles
• Max. contact resistance: 150mΩ
• Contact plating gold plated

Parametri

SPST-NC
0.1A/125VAC
2A/12VDC
ON-(OFF)
IP67
Bez sviras
18.5x5.3x6.5mm
