Apraksts

• Manufacturer SAIA-BURGESS
• Manufacturer series V4N
• Type of switch microswitch SNAP ACTION
• Switches features without lever
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 5A / 250VAC
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of positions 2
• Stable positions number 1-position
• IP rating IP67
• Leads 500mm leads

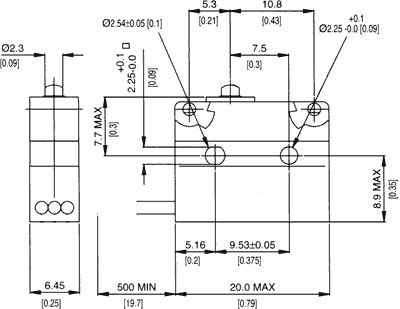

• Body dimensions 20 x 6.4 x 10.3mm
• Mechanical durability 50000000cycles
• Operating temperature -40...85°C
• Operating Force 2.5N
• Terminal pitch 5.08mm

Parametri

SPDT
5A/250VAC
ON-(ON)
IP67
Bez sviras
20x17.5x6.4mm
