Apraksts

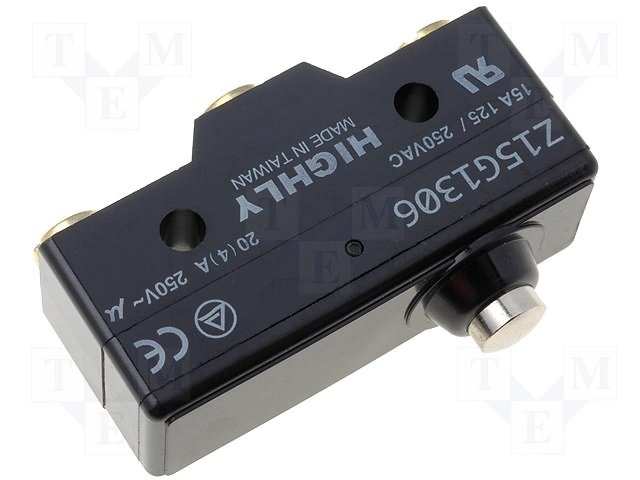

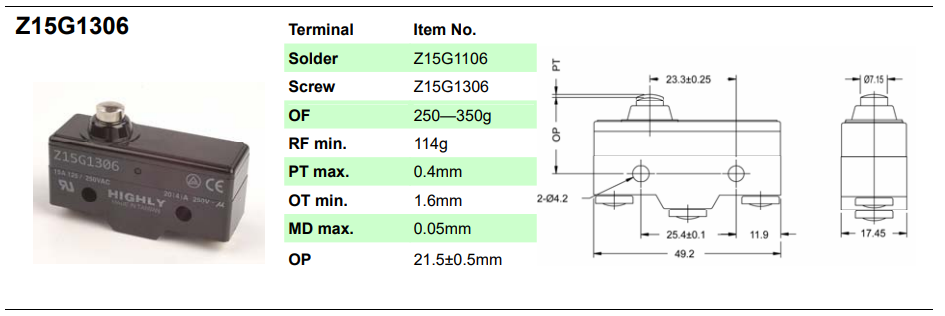

• Specification
• Switch type microswitch
• Switches features with lever
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 15 A / 250 VAC
• Switching method ON-(ON)
• Stable positions number 1-position
• Sealing IP40
• Leads M4 screws
• Body dimensions 49.2 x 17.45 x 24.2mm
• Mechanical durability 1000000cycles
• Operating temperature -25...70°C
• Switching torque 3.5N
• Electrical life 100000cycles
• Max. contact resistance: 15mΩ;
• Min. insulation resistance 100MΩ;

Parametri

SPDT
20A/250VAC
ON-(ON)
IP40
Bez sviras
49.2x17.45x24.2mm

Papildu dokumentācija
