Apraksts

• Manufacturer HIGHLY ELECTRIC

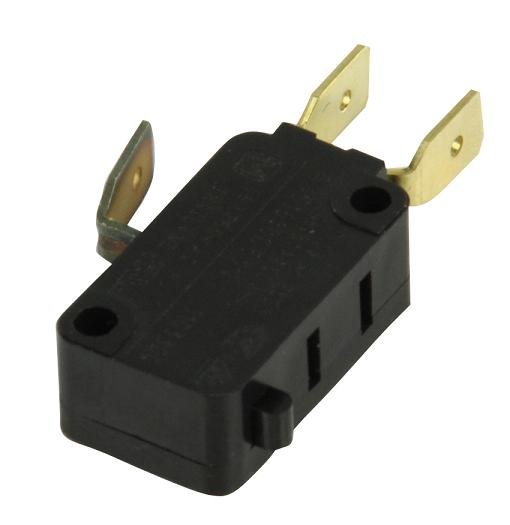

• Type of switch microswitch SNAP ACTION
• AC contacts rating @R(at resistive load) 14A / 250V AC
• at resistive load
• Contacts configuration SPDT
• Contacts configuration
• Max. contact resistance: 15mΩ
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• The position in bracket indicates momentary position.
• Number of positions 2
• Leads connectors 6,3x0,8mm

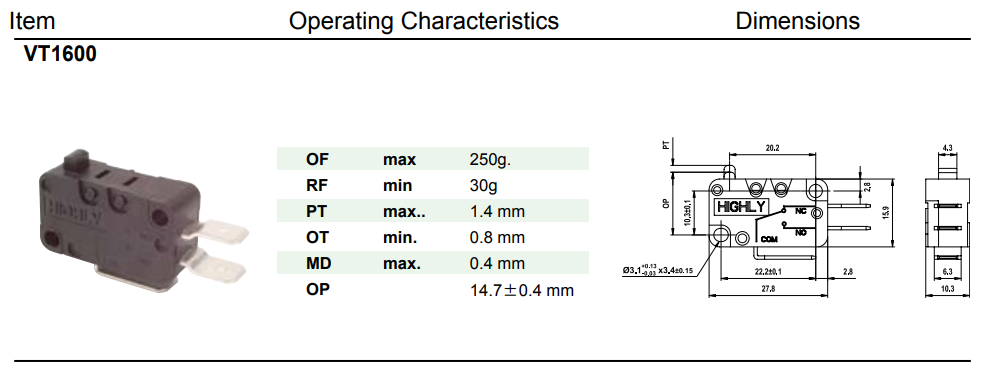

• Body dimensions 27,8x10,3x18,8mm
• Operating temperature -25...70°C
• Operating Force 2,5N
• Electrical life 100000 cykli
• Min. insulation resistance 0,1GΩ
• Conform to the norm IEC 1058-1
• Stable positions number 1
• Masa bruto7.32 g

Parametri

SPDT
ON-(ON)
IP40
Bez sviras
27.8x10.3x15.9mm
14A/250VAC
