Apraksts

• Manufacturer SAIA-BURGESS
• Manufacturer series XC
• Type of switch microswitch SNAP ACTION
• Switches features without lever
• Contacts configuration  SPDT
• AC contacts rating @R  0.3A / 30V AC
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for PCB,  straight

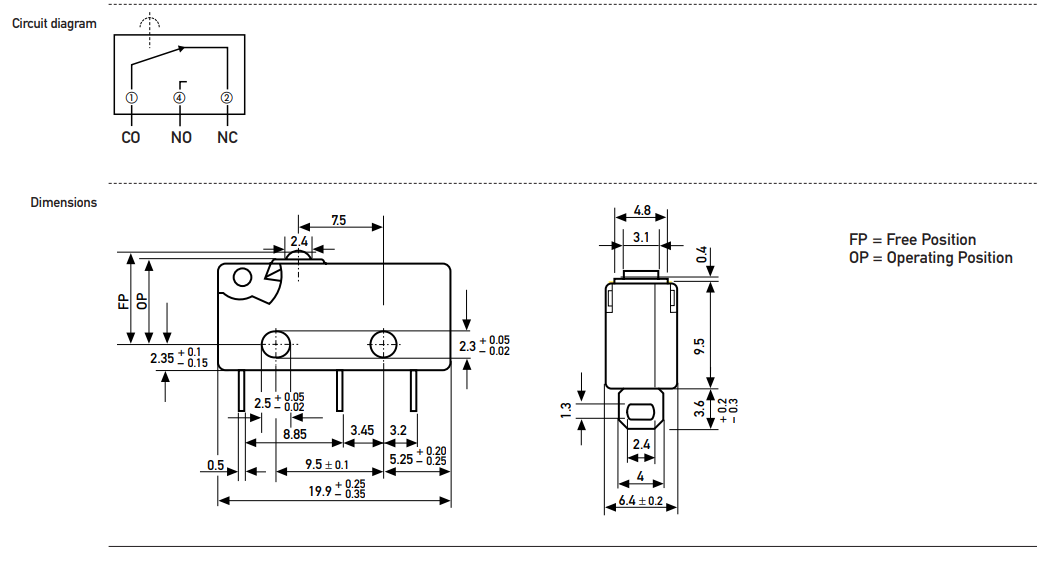

• Body dimensions 19.9x6.4x9.5mm
• Mechanical durability 50000000 cycles
• Operating temperature -40...85°C
• Operating Force 1.7N
• Contact plating gold-plated
• Terminal pitch 6.65mm
• Additional information
• Gross weight: 1.85 g
• Manufacturer part number: XCG8-81Z1

Parametri

SPDT
0.3A/30VAC
ON-(ON)
IP40
Bez sviras
19.9x6.4x9.5mm

Papildu dokumentācija
