Apraksts

• Manufacturer HIGHLY

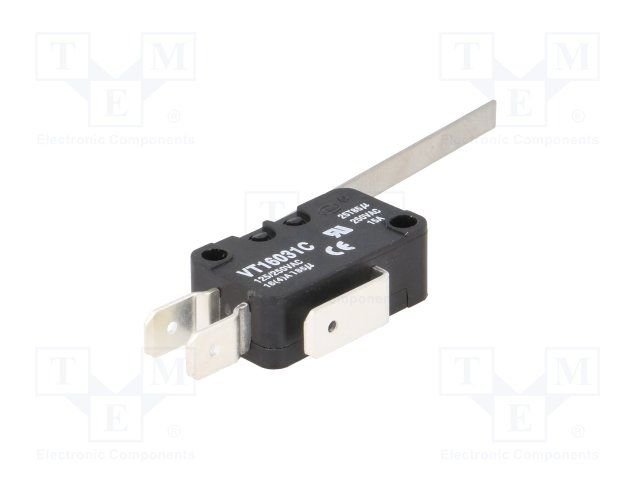

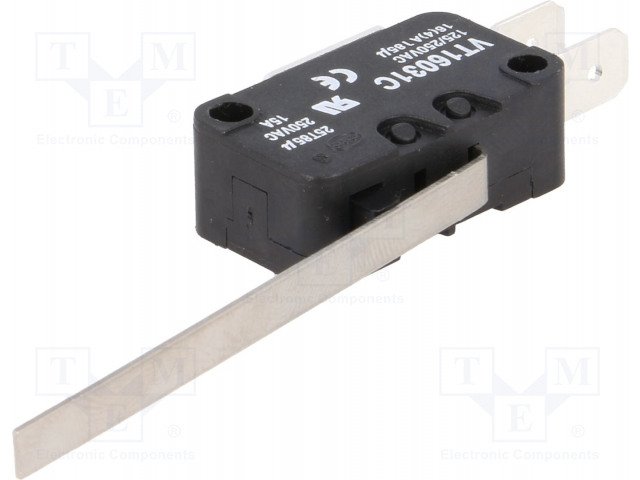

• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 14A / 250V AC
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of positions 2
• Stable positions number 1-position
• Leads 6,3x0,8mm connectors

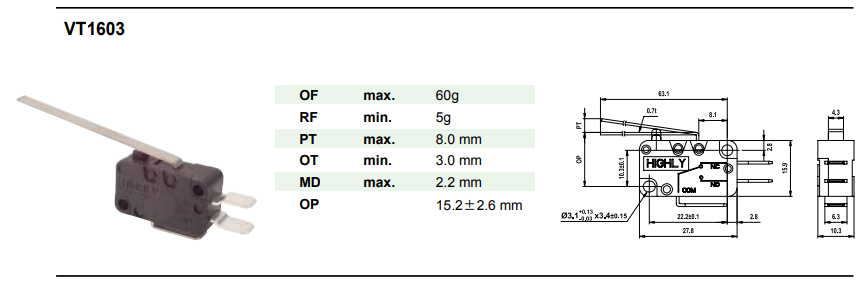

• Body dimensions 27.8x10.3x18.8mm
• Operating temperature -25...70°C
• Operating Force 2.5N
• Lever length 54mm
• Electrical life 100000cycles
• Max. contact resistance: 15mΩ
• Min. insulation resistance 100MΩ
• Conform to the norm IEC 1058-1 Additional information
• Gross weight: 8.53 g

Parametri

SPDT
14A/250VAC
ON-(ON)
IP40
ar sviru
27.8x10.3x18.8mm
