Apraksts

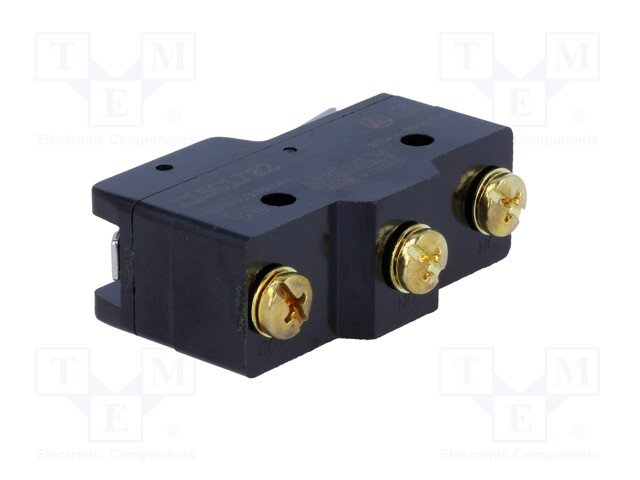

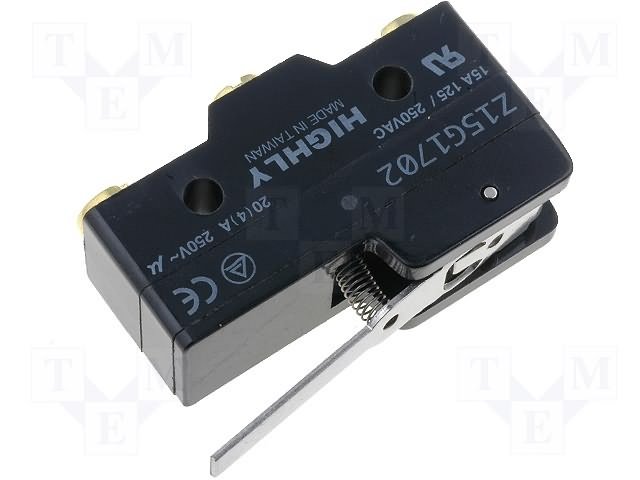

• Manufacturer HIGHLY
• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration  SPDT
• AC contacts rating @R  20A / 250V AC
• AC contacts rating @L  4A / 125V AC
• Max. contact resistance: 15mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 100.00%
• IP rating IP40
• Leads M4 screws

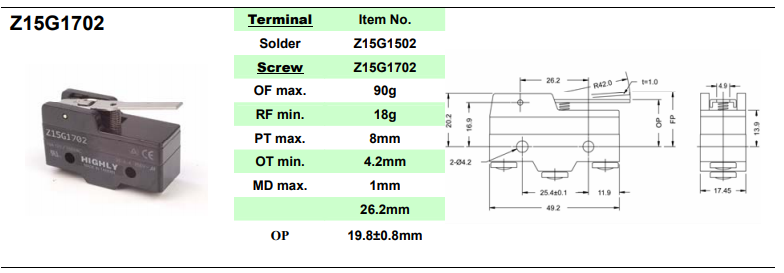

• Body dimensions 49.2x17.45x24.2mm
• Mechanical durability 1000000 cycles
• Operating temperature 0...55°C
• Operating Force 0.9N
• Lever length 42mm
• Electrical life 100000 cycles
• Min. insulation resistance 100MΩ
• Related items AA8000
• Additional information
• Gross weight: 31.67 g
• Manufacturer part number: Z15G1702

Parametri

SPDT
20A/250VAC
ON-(ON)
IP40
ar sviru
49.2x17.45x24.2mm
