Apraksts

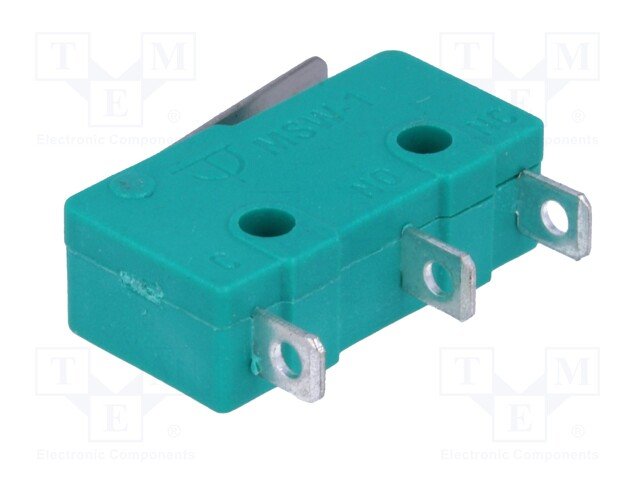

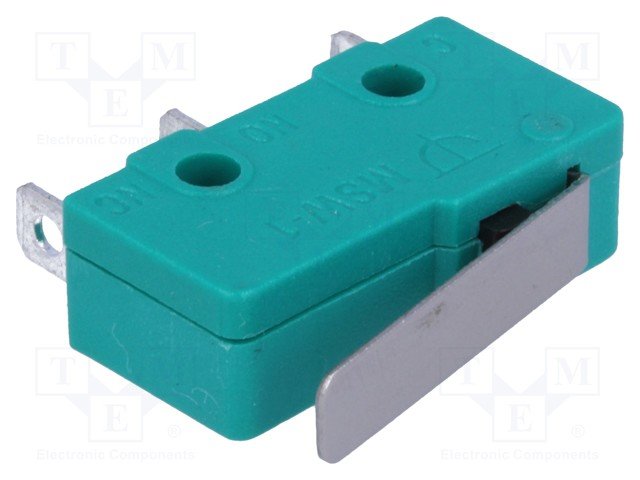

• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration  SPDT
• AC contacts rating @R  5A / 250V AC
• Max. contact resistance: 30mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for soldering

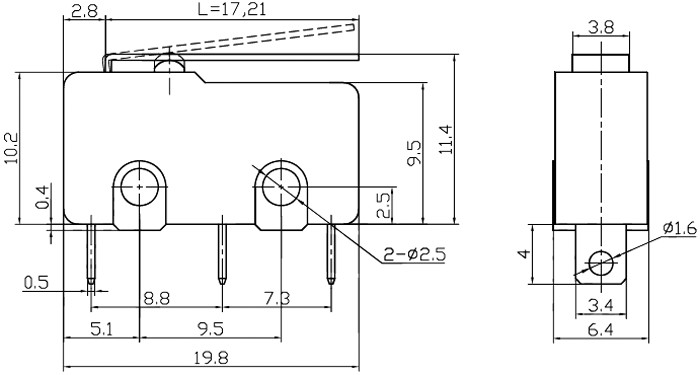

• Body dimensions 19.8x6.4x10.6mm
• Operating temperature -25...65°C
• Operating Force 1.5N
• Lever length 17mm
• Electrical life 30000 cycles
• Min. insulation resistance 100MΩ
• Terminal pitch 7.3mm
• Additional information
• Gross weight: 2 g

Parametri

SPDT
5A/250VAC
ON-(ON)
IP40
ar sviru
19.8x6.4x10.6mm
