Apraksts

• Manufacturer HONEYWELL
• Type of switch microswitch SNAP ACTION
• AC contacts rating @R(at resistive load) 16A / 250V AC
• at resistive load

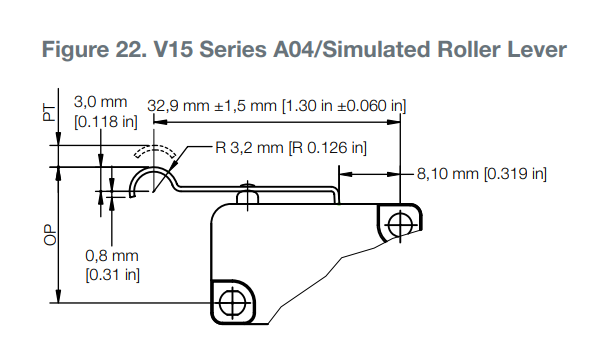

• Switches features with lever with roller simulation
• Contacts configuration SPDT
• Contacts configuration
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• The position in bracket indicates momentary position.
• Number of positions 2
• Manufacturer series V15T
• IP rating IP40

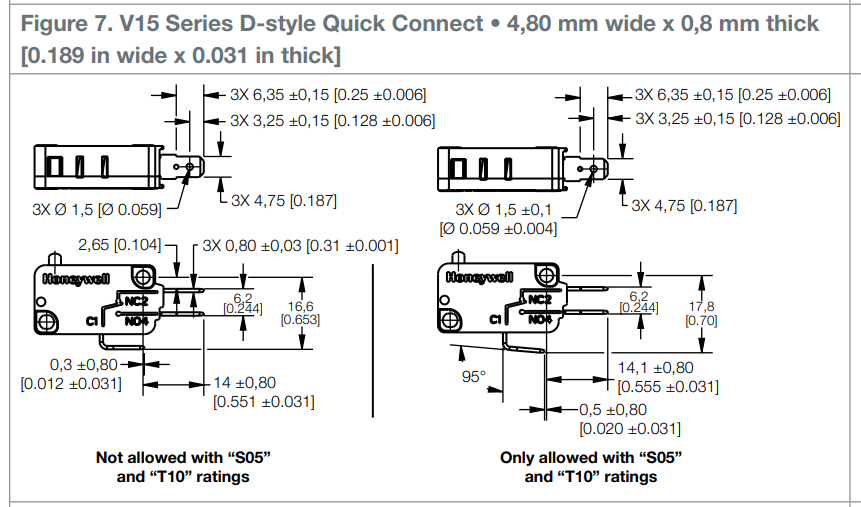

• Leads connectors 4,8x0,5mm
• Body dimensions 33x10,3x15,9mm
• Mechanical durability 1000000 cykli
• Operating temperature -25...125°C
• Operating Force 1,96N
• Stable positions number 1
• Masa bruto7.39 g

Parametri

SPDT
16A/250VAC
ON-(ON)
IP40
Ar sviru
33x10.3x15.9mm

Papildu dokumentācija
