Apraksts

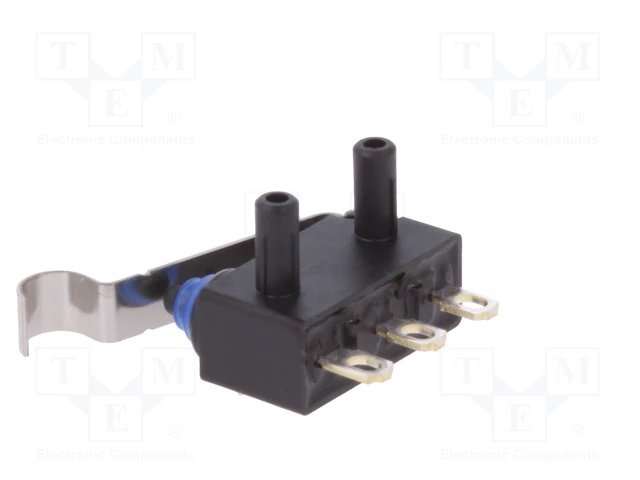

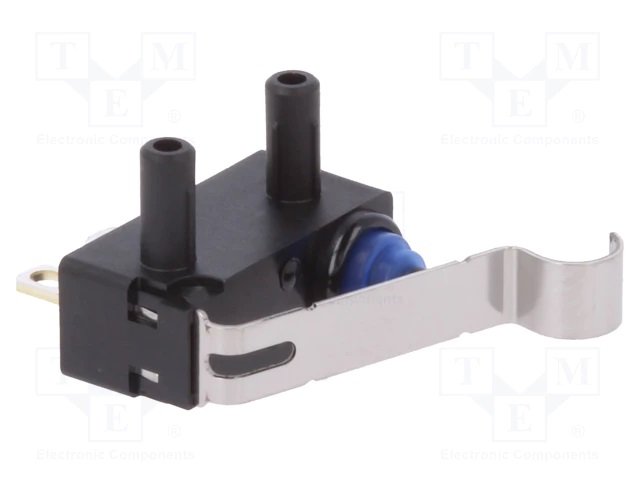

• Manufacturer OMRON OCB
• Type of switch microswitch SNAP ACTION

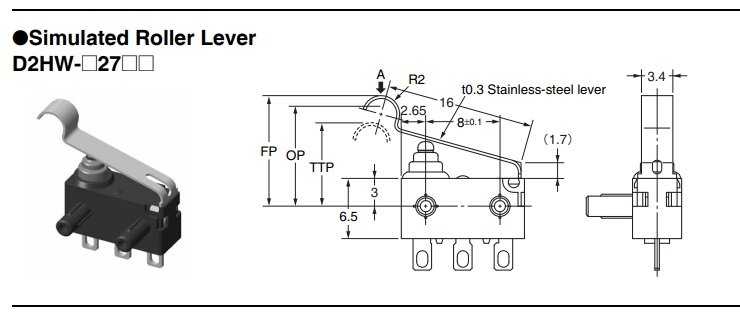

• Switches features with lever with roller simulation
• Contacts configuration SPDT
• AC contacts rating @R(at resistive load) 0.1A / 125V AC
• DC contacts rating @R(at resistive load) 2A / 12V DC
• Max. contact resistance: 100mΩ
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP67
• Leads for soldering
• Body dimensions 13.3x5.3x6.5mm
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Operating Force 0.75N
• Lever length 16mm
• Electrical life 100000 cycles
• Contact plating gold-plated
• Terminal pitch 5.08mm
• Manufacturer series D2HW-B

Parametri

SPDT
0.1A/125VAC
2A/12VDC
ON-(ON)
IP67
Ar sviru
13.3x5.3x6.5mm

Papildu dokumentācija
