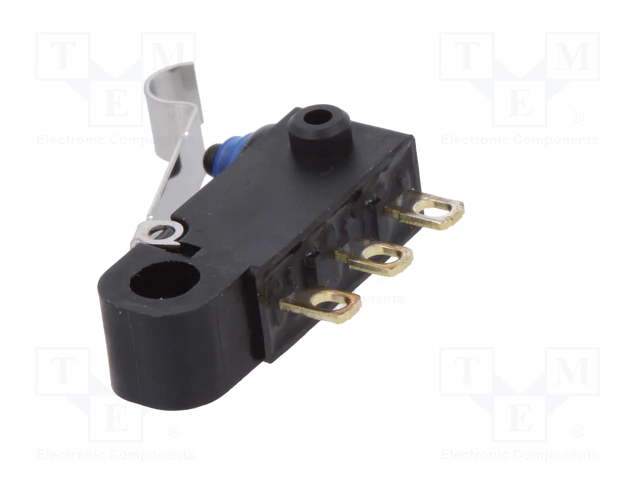

Apraksts

• Manufacturer OMRON Electronic Components
• Type of switch microswitch SNAP ACTION
• AC contacts rating @R(at resistive load) 0.1A / 125V AC
• at resistive load
• DC contacts rating @R(at resistive load) 2A / 12V DC
• at resistive load
• Switches features with lever with roller simulation
• Contacts configuration SPDT
• Contacts configuration
• Max. contact resistance: 100mΩ
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• The position in bracket indicates momentary position.
• Number of positions 2
• Stable positions number 1
• IP rating IP67
• Leads for soldering
• Body dimensions 18.5x5.3x6.5mm
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Operating Force 0.65N
• Lever length 15mm
• Electrical life 100000 cycles
• Contact plating gold-plated
• Terminal pitch 4.38mm
• Manufacturer series D2HW-C
• Gross weight1.025 g
• Manufacturer part number: D2HW-A231D
