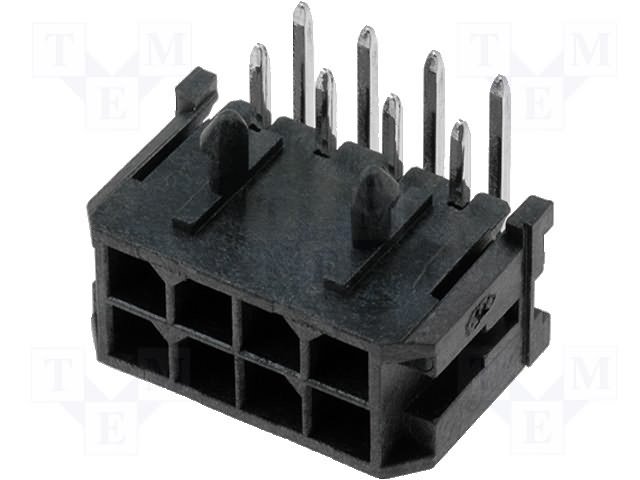

Apraksts

• Specification
• Connector socket
• Connector type wire-board
• Connector type male
• Contacts pitch 3mm
• Number of pins 8
• Connector variant angled
• Contact plating tinned
• Mounting THT
• Connector series Micro-Fit 3.0
• Operating temperature -40...105°C
• Maximum current 5A
• Flammability rating UL94V-0
• Body material LCP
• Type of pin configuration 2x4
• Locking system lock
• Rated voltage 250V
• A dimension 15.65mm
• B dimension 9mm
• C dimension 4.7mm
• Contact material brass

Parametri

3mm
2x4
8
Leņķisks 90°
PCB
Micro-Fit 3.0
Ligzda
