Apraksts

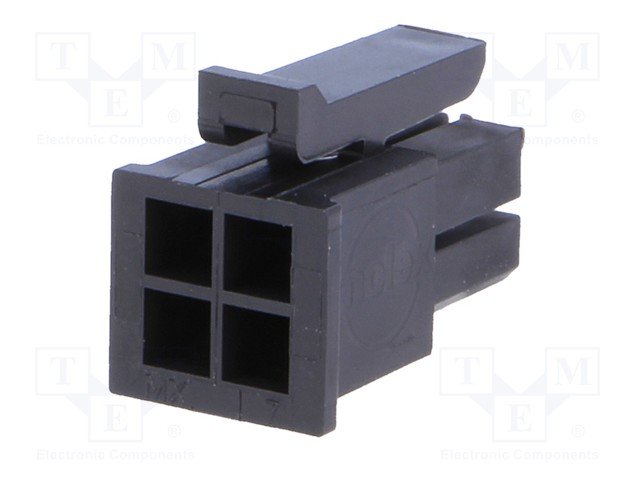

• Specification
• Connector plug
• Connector type wire-board
• Connector type female
• Contacts pitch 3mm
• Number of pins 4
• Connector variant w/o terminals
• Connector series Micro-Fit 3.0
• Operating temperature -40...105°C
• Maximum current 5A
• Flammability rating UL94V-0
• Type of pin configuration 2x2
• Locking system lock
• Rated voltage 250V
• Mechanical mounting for cable
• A dimension 6.85mm
• B dimension 3mm
• Material polyester

Parametri

3mm
2x2
4
Taisns
Uz vadu
Micro-Fit 3.0
Spraudnis
