Apraksts

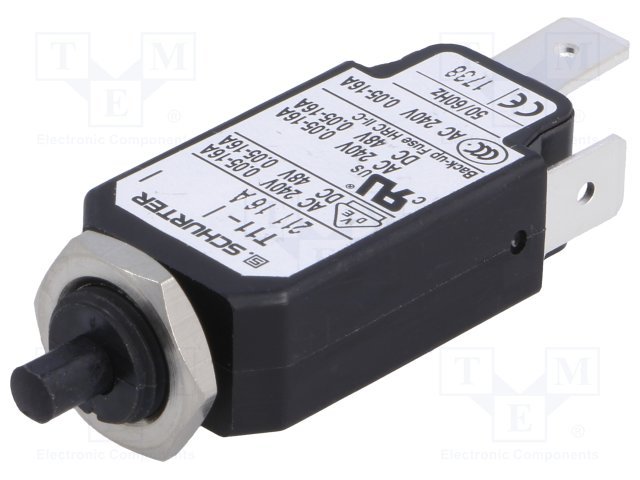

• Manufacturer SCHURTER
• Type of protection circuit breaker
• Rated voltage 240V AC, 48V DC
• Rated current 16A
• Contacts configuration SPST
• Number of poles 1
• Mounting screw
• Operating temperature -5...60°C
• Breakers application UPS, industrial appliance, household appliance
• Leads 6.3x0.8mm connectors
• Mounting hole diameter Ø9.6mm
• Weight 10g
• Dielectric strenght 1.5kV AC
• Associated items TZZ01
• Thread length 6mm

Parametri

SPST
16A
250VAC
48VDC
